REW & Mini-DSP dual subs and still no chest thump?

Karl Harrison

New Member
Thread Starter
Joined
Jan 1, 2020
Messages
4
My AV System
Preamp, Processor or Receiver
Anthem MRX 720
Universal / Blu-ray / CD Player
Panasonic UB9000
Front Speakers
Monitor Audio Apex A10
Center Channel Speaker
Monitor Audio Apex A40
Surround Speakers
Monitor Audio Apex A10
Subwoofers
SVS Ultra SB13 x 2
Other Speakers or Equipment
Mini-DSP 2x4HD
Video Display Device
JVC X7900 Projector
Screen
Carada 92" Fixed
Remote Control
stock
Hi there

I've been working on trying to improve the real bass kick in my dedicated cinema room and struggling so looking for help
So i will start with what I have done so far.
I Have an Athem MRX 720 which drives my speakers directly, I have one subwoofer a SVS Ultra SB13 and this was not enough(maybe wrong) I ran the ARC and there was no bass in movies and after many tweaks to the ARC profiles and help from other users still poor bass with no kick.

I was advised you need 2 subwoofers so I got an identical SVS Ultra 13, these subwoofers are placed as advised with 1 at rear left corner and the other front right corner.
Next issue is to get these setup so took tips from You tube vids on Gain matching and Alignment, to enable this I have added a Mini-DSP 2x4HD and using REW with UMIK-1 I got what I think was the aim is that with both subwoofers I get a output gain, which is shown in the attached graph.I have also attached the subs seperate measurements.
so I re-run ARC and again poor bass so I made some adjustments but I still lack Bass chest thump..
Can anyone help further as I would expect in a room this size the 2 subwoofers to be enough?

room size is length 5.36 m * width 2.56m *height 2.57m I have 2 doors both on the left side of the room, one front left and the other rear left, so the front left is the main entrance so cannot put subwoofer front left. Room has no treatments, flooring is carpet and all walls are standard 12mm plasterboard.
all pics have 1/6th smoothing applied in REW

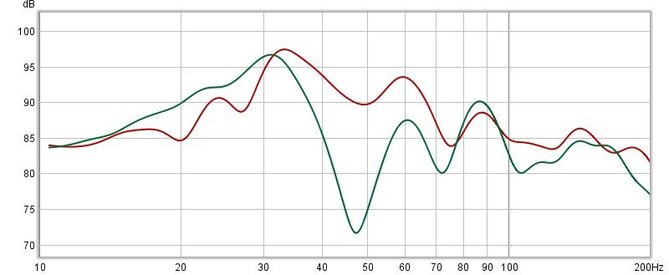

1st pic green line is front sub

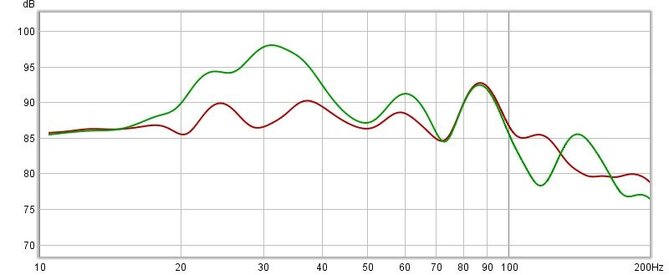

2nd pic green line has a 6db delay set on front sub via mini dsp

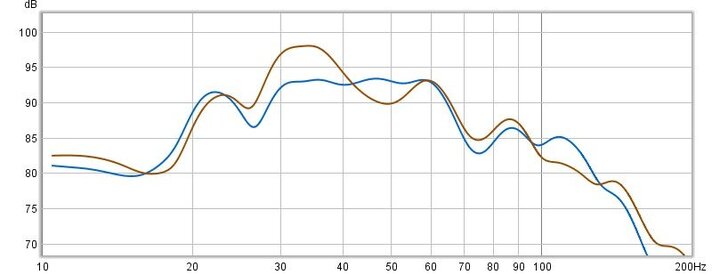

3rd pic blue line has ARC EQ applied with no tweaks


Attachments

Last edited:

Wayne A. Pflughaupt

Moderator
Staff member
Joined
May 21, 2017
Messages
289
Location
Corpus Christi, TX
My AV System
Preamp, Processor or Receiver
Yamaha RX-Z9 A/V Receiver
Universal / Blu-ray / CD Player
Pioneer BDP-23FD Blu Ray Player
Front Speakers
Canton Karat 920
Center Channel Speaker
Canton Plus D
Surround Speakers
Canton Plus D
Surround Back Speakers
Realistic Minimus 7 (front EFX speakers)
Front Height Speakers
Yamaha YDP2006 Digital Parametric EQ (front mains)
Rear Height Speakers
Yamaha YDP2006 Digital Parametric EQ (subs)
Subwoofers
Adcom ACE-515 (for power management)
Video Display Device
Yamaha DT-2 (digital clock display)
Screen
Audio Control R130 Real Time Analyzer
Remote Control
Stock Yamaha Remote
Other Equipment
Pioneer PDP-6010FD 60" Plasma TV
One of those subs is sufficient to blow out the walls in a room as small as that.

Typically the remedy if one isn’t happy with the sub levels set from room correction is to simply go into the receiver’s menu and increase the level. Or increase it at the sub itself via its gain control.

Just curious, what is the miniDSP doing for you? You don’t seem to be using its equalization capabilities.

Regards,
Wayne


Sonnie

Senior Admin
Staff member
Joined
Apr 2, 2017
Messages
2,504
Location
Alabama
My AV System
Preamp, Processor or Receiver
NAD M17 V2 Processor
Main Amp
Emotiva XPA-1 Gen 2 Monoblocks
Additional Amp
Emotiva XPA Seven
Other Amp
Emotiva A-150
Universal / Blu-ray / CD Player
Panasonic UB9000 4K UHD Player
Front Speakers
MartinLogan Classic ESL 9
Center Channel Speaker
MartinLogan Focus C-18
Surround Speakers
MartinLogan ElectroMotion ESL
Surround Back Speakers
MartinLogan Motion 12
Front Height Speakers
MartinLogan EM-IC
Rear Height Speakers
MartinLogan EM-IC
Subwoofers
SVSound SB16-Ultra x 4
Video Display Device
Epson 6050
Screen
Elite Screen
Remote Control
Universal MX-890
Other Equipment
Dish Joey 4K
Look at the combined response. You have to equalize both subs together and look a their combined response. Then correct your response based on how they measure together.


Karl Harrison

New Member
Thread Starter
Joined
Jan 1, 2020
Messages
4
My AV System
Preamp, Processor or Receiver
Anthem MRX 720
Universal / Blu-ray / CD Player
Panasonic UB9000
Front Speakers
Monitor Audio Apex A10
Center Channel Speaker
Monitor Audio Apex A40
Surround Speakers
Monitor Audio Apex A10
Subwoofers
SVS Ultra SB13 x 2
Other Speakers or Equipment
Mini-DSP 2x4HD
Video Display Device
JVC X7900 Projector
Screen
Carada 92" Fixed
Remote Control
stock
One of those subs is sufficient to blow out the walls in a room as small as that.

Typically the remedy if one isn’t happy with the sub levels set from room correction is to simply go into the receiver’s menu and increase the level. Or increase it at the sub itself via its gain control.

Just curious, what is the miniDSP doing for you? You don’t seem to be using its equalization capabilities.

Regards,
Wayne

Hi Wayne

I was looking to try and flatten the graph as much as possible.

The miniDSP is required because the Anthem AVR's do not have seperate controls for the 2 sub outputs so the only way to do the alignment is to introduce this device. I was also thinking of BEQ...


Karl Harrison

New Member
Thread Starter
Joined
Jan 1, 2020
Messages
4
My AV System
Preamp, Processor or Receiver
Anthem MRX 720
Universal / Blu-ray / CD Player
Panasonic UB9000
Front Speakers
Monitor Audio Apex A10
Center Channel Speaker
Monitor Audio Apex A40
Surround Speakers
Monitor Audio Apex A10
Subwoofers
SVS Ultra SB13 x 2
Other Speakers or Equipment
Mini-DSP 2x4HD
Video Display Device
JVC X7900 Projector
Screen
Carada 92" Fixed
Remote Control
stock
Look at the combined response. You have to equalize both subs together and look a their combined response. Then correct your response based on how they measure together.

I thought i was looking at combined response? the first graph shows seperate and the others are both subs on together so both together does appear to cancel out the large null from the front sub and then adding the delay increases the combined output. The aligned subs are then treated as one by Anthem ARC process.. It does look like the filters ARC applies flatten the mid bass in the graph

I do not listen at reference levels as that is painful for me, so the tweaks applied previously have included a house curve or slope which is through the ARC customisation although not applied for the graphs uploaded

Last edited:

Karl Harrison

New Member
Thread Starter
Joined
Jan 1, 2020
Messages
4
My AV System
Preamp, Processor or Receiver
Anthem MRX 720
Universal / Blu-ray / CD Player
Panasonic UB9000
Front Speakers
Monitor Audio Apex A10
Center Channel Speaker
Monitor Audio Apex A40
Surround Speakers
Monitor Audio Apex A10
Subwoofers
SVS Ultra SB13 x 2
Other Speakers or Equipment
Mini-DSP 2x4HD
Video Display Device
JVC X7900 Projector
Screen
Carada 92" Fixed
Remote Control
stock
JStewart

Useful information thank you


Sonnie

Senior Admin
Staff member
Joined
Apr 2, 2017
Messages
2,504
Location
Alabama
My AV System
Preamp, Processor or Receiver
NAD M17 V2 Processor
Main Amp
Emotiva XPA-1 Gen 2 Monoblocks
Additional Amp
Emotiva XPA Seven
Other Amp
Emotiva A-150
Universal / Blu-ray / CD Player
Panasonic UB9000 4K UHD Player
Front Speakers
MartinLogan Classic ESL 9
Center Channel Speaker
MartinLogan Focus C-18
Surround Speakers
MartinLogan ElectroMotion ESL
Surround Back Speakers
MartinLogan Motion 12
Front Height Speakers
MartinLogan EM-IC
Rear Height Speakers
MartinLogan EM-IC
Subwoofers
SVSound SB16-Ultra x 4
Video Display Device
Epson 6050
Screen
Elite Screen
Remote Control
Universal MX-890
Other Equipment
Dish Joey 4K
I'm confused... why do you have 6 different responses in the graphs above? You should only have one starting response, with no processing... it would typically be the same on all graphs if you want to split up the different processed results. It doesn't look like ARC is doing the job for you to be quite frank. The second graph with the red response looks to be the best, with the exception of the 85-90Hz peak. You could increase the overall bass volume at the subs to get more bass presence. We would also need to see how it integrates with your main speakers to know if everything looks okay.

You can also use the miniDSP as a parametric EQ and tame some of the issues.
