This is my first post and REW measurements
Fingers crossed I've done okay to start.
Really appreciate any input you may have,
Thank you!
Measurements are post room treatment, and Dip switches on the monitors


Attachments

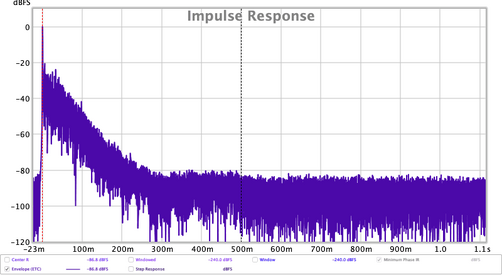

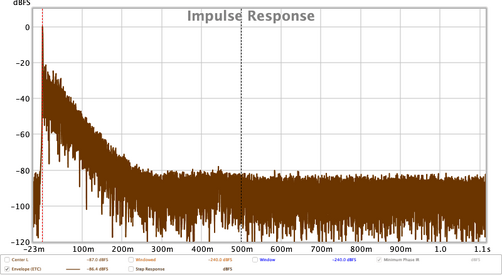

  • Center L ETC.png
    Center L ETC.png
    15.4 KB · Views: 44

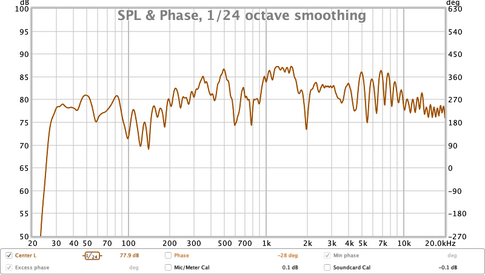

  • Center L FR.png
    Center L FR.png
    18.5 KB · Views: 44

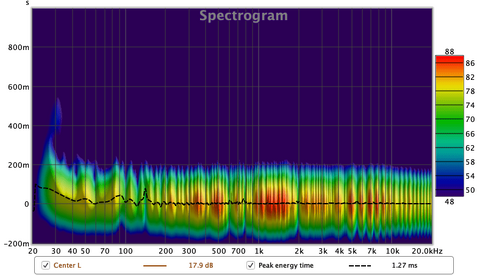

  • Center L Spectro.png
    Center L Spectro.png
    54.1 KB · Views: 37

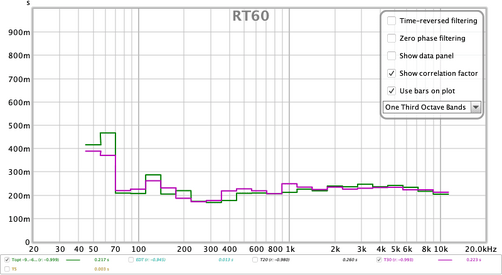

  • Center L Topt:T30.png
    Center L Topt:T30.png
    10.9 KB · Views: 37

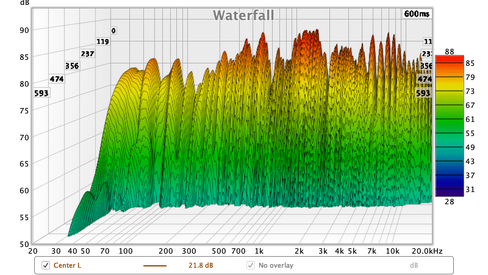

  • Center L Waterfall 20-20k.png
    Center L Waterfall 20-20k.png
    93.4 KB · Views: 38

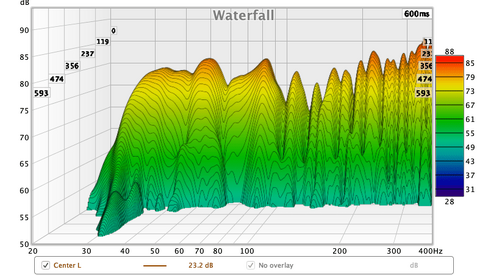

  • Center L Waterfall.png
    Center L Waterfall.png
    69.7 KB · Views: 39

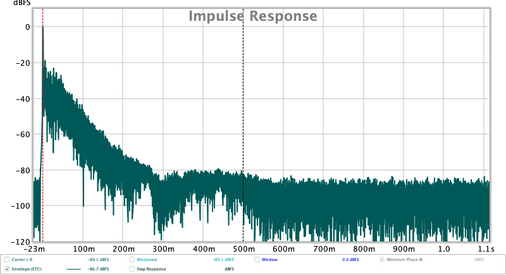

  • Center L+R ETC.png
    Center L+R ETC.png
    15.2 KB · Views: 37

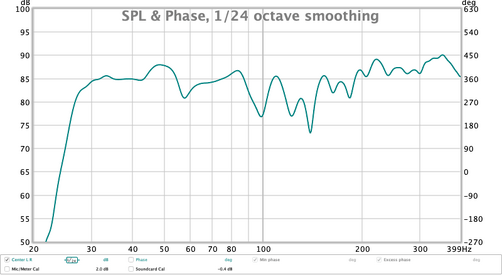

  • Center L+R FR.png
    Center L+R FR.png
    12.2 KB · Views: 41

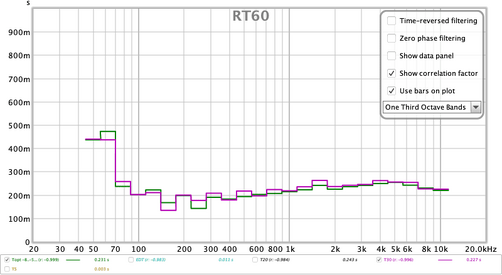

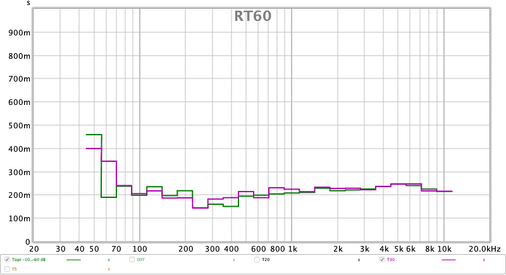

  • Center L+R RT60.png
    Center L+R RT60.png
    6.4 KB · Views: 41

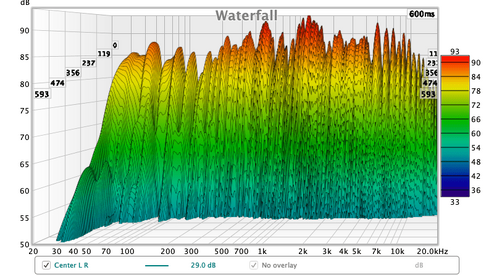

  • Center L+R waterfall 20-20k.png
    Center L+R waterfall 20-20k.png
    100.2 KB · Views: 41

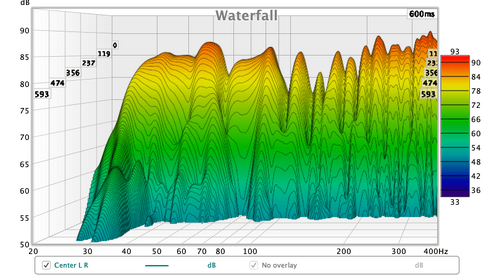

  • Center L+R Waterfall.png
    Center L+R Waterfall.png
    77 KB · Views: 37
  • Center R ETC.png
    Center R ETC.png
    15.9 KB · Views: 30

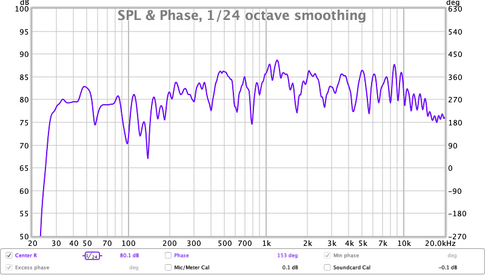

  • Center R FR.png
    Center R FR.png
    18.2 KB · Views: 29

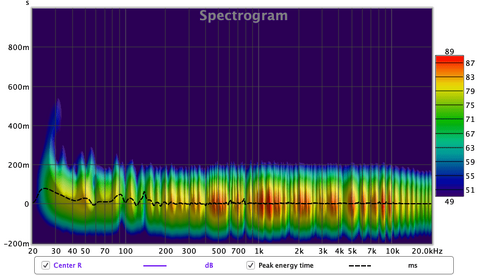

  • Center R Spectro.png
    Center R Spectro.png
    53.7 KB · Views: 31
  • Center R Topt:T30.png
    Center R Topt:T30.png
    11.3 KB · Views: 29

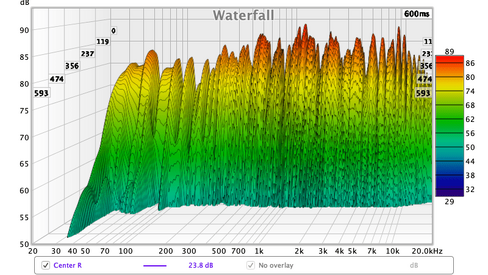

  • Center R Waterfall 20-20k.png
    Center R Waterfall 20-20k.png
    94.6 KB · Views: 29

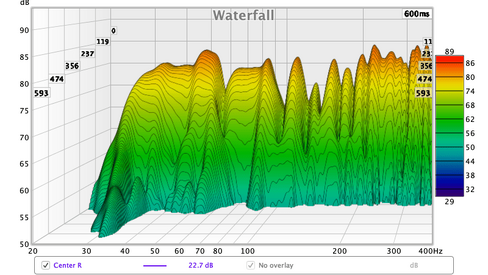

  • Center R Waterfall.png
    Center R Waterfall.png
    70.1 KB · Views: 33

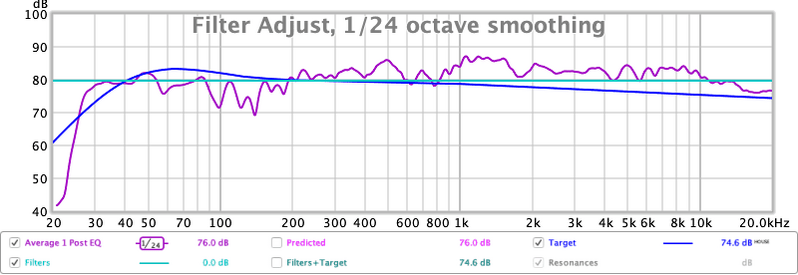

  • House Curve.png
    House Curve.png
    13.3 KB · Views: 33

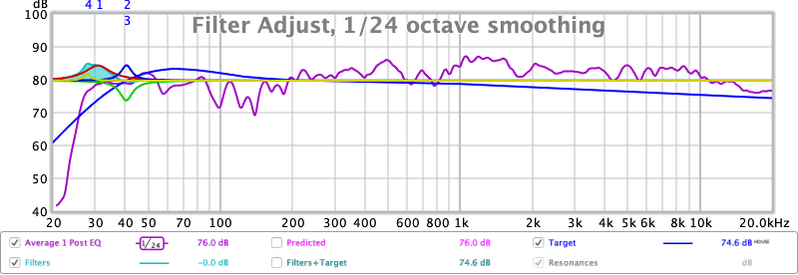

  • Post EQ filter.png
    Post EQ filter.png
    14.9 KB · Views: 46

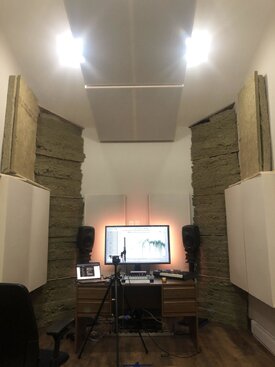

  • unnamed (1).jpg
    unnamed (1).jpg
    154.6 KB · Views: 47

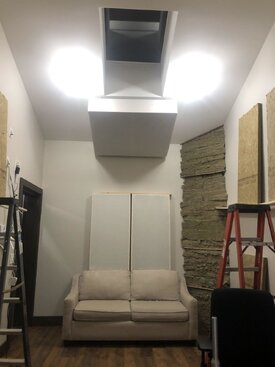

  • unnamed.jpg
    166.9 KB · Views: 47

DanDan

Moderator
Staff member
Joined
Mar 10, 2018
Messages
743
Pretty good, 200mS -400mS is within the EBU standards. The midrange rise makes me a bit uncomfortable, but then the NS10 was very popular. How does it sound? I recommend a little experiment. Remove those Front Wall panels, move the speakers to virtually touching the FW, (Masking tape prevents scratches) Also both with and without those FW panels try width and listener position variations. Let's see if that beefs up your LF response. I would apply a house curve, perhaps using just the onboard Eq on the speakers. I favour the Bruel and Kjaer Curve and use Dirac Live to implement it.
