Hello,

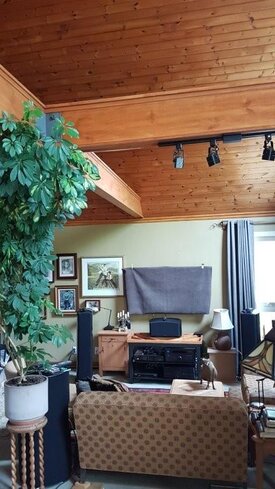

our 5.1 system migrated from a small room in the basement to a vast room (cathedral ceiling, 16 feet x 26 feet floor surface, photo to come soon). When it was in the basement I had a lot of help from many people here and @jtalden among them.

Also I now have a minidsp 2x4 HD in the chain between the receiver and the sub.

The plan is the following:
  1. with only one sub, fine tuned the delays to integrate the sub with the fronts at the best xo.
  2. with the alignment tool decide the best place (among those possible waf intended!) for the second sub incoming.
  3. when the second toy arrives, integrate both subs together and fine tuned the virtual one sub with the fronts.

I did the following homeworks for part one of the plan:

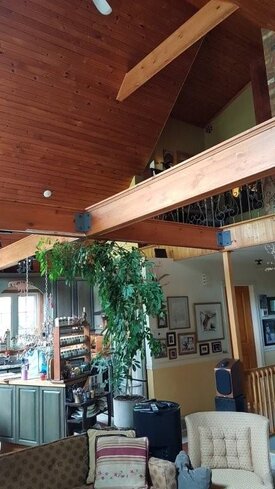

  1. Find the best placement in the circumstances (the room is also the livingroom and it is open on the dining room...) for my 5 satellites (see mlp file)
  2. Find the best xo between 100Hz and 80Hz;
  3. Find the best of one of 2 distances setting (delay in the receiver) using polarise inverse for the sub if needed. I had to choose between 135cm which is the physical distance from the MLP to the sub or 285cm which was the old distance inthe ancient room.
The result was finally xo 80Hz and distance is 135cm which is the delay in the receiver.

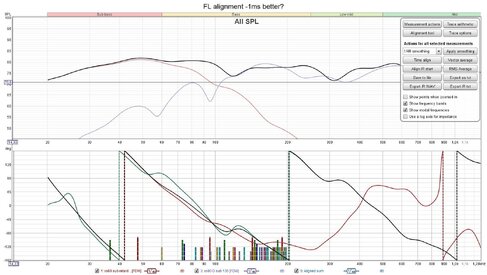

Then I measured
FL alone,

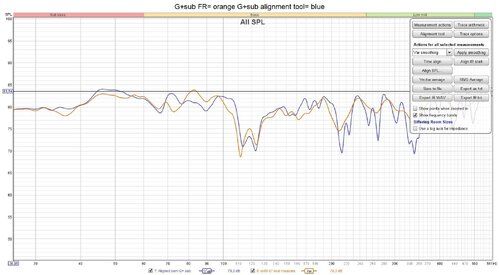

Fr alone

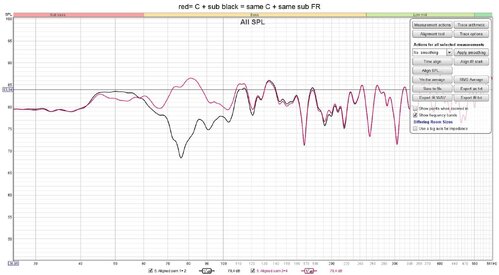

C alone

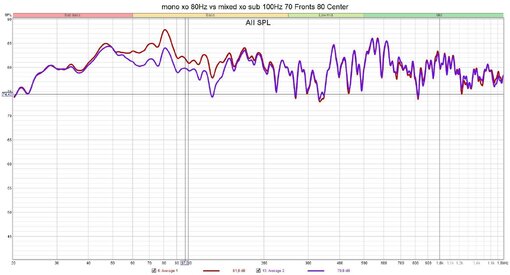

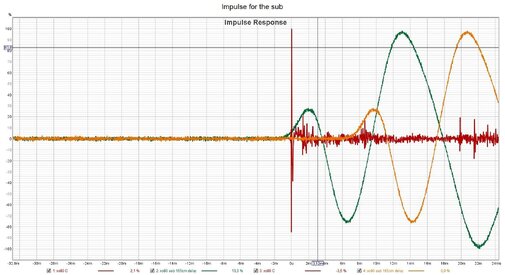

sub alone at xo80
see second file

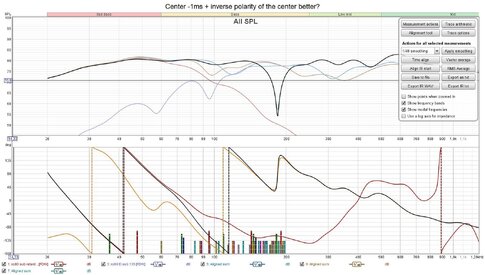

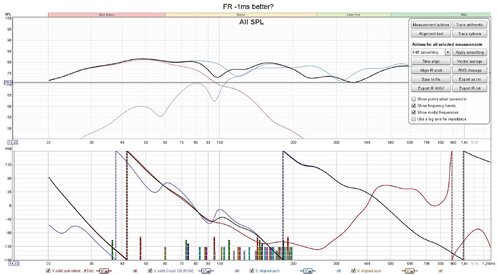

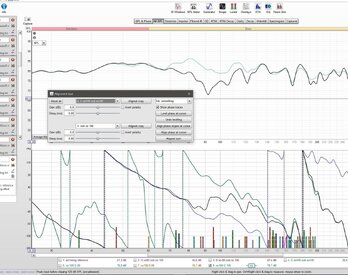

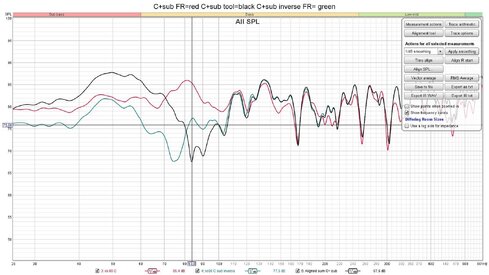

Now the thricky part and the existencial question: did I use correctly the alignment tool to find a possible improvement by adding 1 foot delay (-1ms) to the distance setting of the sub and inversing the polarity of the center?

If I am correct, I will try to use alignment tool to find where to put a second sub.
