Multi output device doesn't work on OSX

oliver

Member
Thread Starter
Joined
May 24, 2017
Messages
25
Location
Italy
Hello John,
I am under High Sierra OSX 10.13.6, REW last version and build, 5.20 Beta 15.

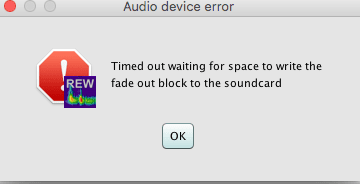

I have created a multi output device but REW give me back this message:

.Schermata 2019-07-09 alle 09.30.40.png

Just for information, multi output devices never worked on REW, but works on some other software.
Thank you,
Best regards.


John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
2,200
Can you attach the soundcard debug file REW generates when you have a multi output device configured? Use the Generate debug file button on the Souncard preferences to generate it.


John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
2,200
Which devices are in the multi output group? Is drift correction selected for the slave device(s)?

Edit: there doesn't seem to be a fundamental issue with multi-output devices, I created one from the built-in output and a USB soundcard and REW worked normally using the multi output device.

Last edited:

oliver

Member
Thread Starter
Joined
May 24, 2017
Messages
25
Location
Italy
Hi John,
here a screenshot of what inside the multi output device:
Schermata 2019-07-09 alle 14.37.09.png

Just two focusrite Scarlett, on my side doesn't work, maybe is the drift correction?


oliver

Member
Thread Starter
Joined
May 24, 2017
Messages
25
Location
Italy
Ok,
checked with one Scarlett and the default audio card on my mac and it works, if I put the two USB Scarlett it doesn't.


John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
2,200
Odd. What clock rate was the multi output device set up for? How about if you make a device with the built-in output and the two Scarletts?


oliver

Member
Thread Starter
Joined
May 24, 2017
Messages
25
Location
Italy
the sampling rate was 44.100KHz. With 2 Scarletts and the built-in output together doesn't work, same message.


John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
2,200
Worth trying with a different sample rate when creating the multi-output device, 48 kHz perhaps, but I'm only guessing at what might help, sorry.


oliver

Member
Thread Starter
Joined
May 24, 2017
Messages
25
Location
Italy
tried with all the sampling rate, same error,
As a possible helpful information, with Smaart live works well.


John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
2,200
I'm presuming you are seeing the message when you turn off the signal generator? It may be safe to ignore it.

Have you tried making a sweep measurement?


oliver

Member
Thread Starter
Joined
May 24, 2017
Messages
25
Location
Italy
Yes the message appear whe I turn off the generator.

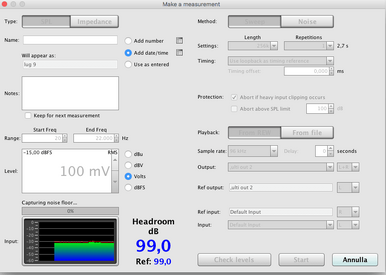

If I make a sweep measurement the generator get stuck:

Schermata 2019-07-09 alle 15.07.19.png


John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
2,200
There might be an error message in the log files from the sweep measurement attempt, they are in the REW folder in ~/Library/Logs. I'm not sure how I could go about fixing this though.


John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
2,200
No clues there, sorry, other than an attempt to show too many error messages if the output can't be written to - I've fixed that but I have no idea why the multi output doesn't work with two USB devices.


oliver

Member
Thread Starter
Joined
May 24, 2017
Messages
25
Location
Italy
Hi John,
Sorry to reply so late.
No worries, I will find a workaroud.
Thanks for trying.
Best regsrds.
