Hey everyone,

I was told to by the guys over at Gearslutz to come here for assistance as it seems there are some issues with my REW measurements. I've tried 3 times to get accurate measurements but still having problems.

They told me to speak with John Mulcahy.

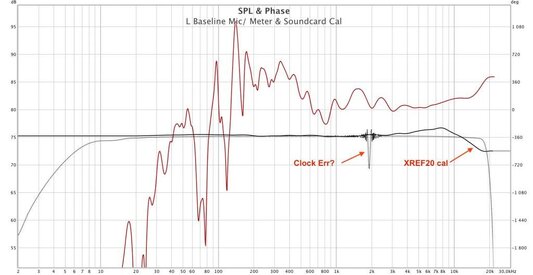

Anyways, It seems like there is an issue with the soundcard reading. Please see attached file. One of the gentlemen said my readings are still inaccurate and it could be due to the soundcard?

I've done tests 3 times and all three times have apparently been wrong. Not sure what I'm doing wrong as I am brand spanking new to this so in order for me to get the guys at Gearslutz an accurate measurement i need to figure this out.

If anyone can shed some light, I'd greatly appreciate it.

Soundcard= Komplete Audio 6


Attachments

John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
1,903
Looks like there was a glitch or dropout during your soundcard cal measurement, it also rolls off quite early at the top end. I'd just remove the soundcard cal and measure without it.

Use single sweeps rather than 2 sweeps.

Look in Audio Midi Setup in the mac (in Applications -> Utilities) and check the sample rate the card is configured for, use the same rate in REW.

There is a very good guide on mac setup here.


recaro19

New Member
Thread Starter
Joined
Aug 13, 2019
Messages
4
Hello John,

Thanks a lot of your response. When you say remove the soundcard cal, do you mean to take that calibration file out when REW asks for it in the preferences set up menu?

I'll definitely take a look at the mac settings first as I didn't even think about making sure the laptop settings coincided with the settings of the soundcard. I'll make sure to set those and then do the test again.


Wayne A. Pflughaupt

Moderator
Staff member
Joined
May 21, 2017
Messages
257
Location
Corpus Christi, TX
My AV System
Preamp, Processor or Receiver
Yamaha RX-Z9 A/V Receiver
Main Amp
Ramsa WP-9440 Stereo Amplifier (for subwoofers)
Additional Amp
TIVO Premier TCD746320 (OTA TV tuner)
Other Amp
Nakamichi MB-1 Seven-Disc CD Changer
Universal / Blu-ray / CD Player
Pioneer BDP-23FD Blu Ray Player
Front Speakers
TASCAM SS-R05 Media Player/Recorder
Center Channel Speaker
LRS Electronics Human 61 Speakers (all channels)
Surround Speakers
Realistic Minimus 7 (front EFX speakers)
Surround Back Speakers
Custom Built-in Subwoofer with Dual Shiva 12"
Front Height Speakers
Yamaha YDP2006 Digital Parametric EQ (front mains)
Rear Height Speakers
Yamaha YDP2006 Digital Parametric EQ (subs)
Subwoofers
Adcom ACE-515 (for power management)
Other Speakers or Equipment
Chase Technologies RLC-1 (remote control for subs)
Video Display Device
Yamaha DT-2 (digital clock display)
Screen
Audio Control R130 Real Time Analyzer
Remote Control
Stock Yamaha Remote
Other Equipment
Pioneer PDP-5070HD Plasma TV
Ditto what John said. The soundcard calibration is only needed for really cheap soundcards (like in the $20-30 range). Most everything these days over $100 has ruler-flat response and doesn’t need calibration (although it never hurts to check).

Regards,
Wayne A. Pflughaupt


recaro19

New Member
Thread Starter
Joined
Aug 13, 2019
Messages
4
Ditto what John said. The soundcard calibration is only needed for really cheap soundcards (like in the $20-30 range). Most everything these days over $100 has ruler-flat response and doesn’t need calibration (although it never hurts to check).

Regards,
Wayne A. Pflughaupt

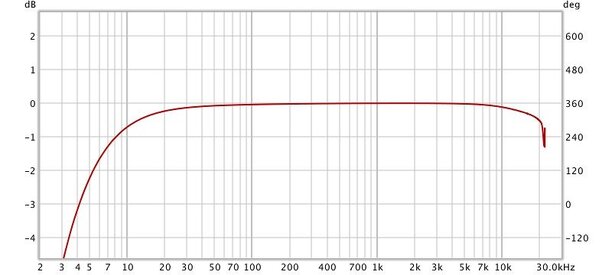

Well, I think the guys at gearslutz are asking for it so just as a precaution i ran the test again. This time i used an XLR on input one to 1/4" stereo on the right output. I was using 1/4" to 14" stereo before so maybe thats why i got the glitch.

Looks better now no?
