Impulse form change on estimate time delay.Why?

Discussion in 'Official REW (Room EQ Wizard) Support Forum' started by asilas, Mar 14, 2019 at 1:36 PM.

  1. asilas

    asilas New Member
    Thread Starter

    Joined:
    Aug 13, 2018
    Messages:
    5
    Likes Received:
    0
    Hello,
    If i do impulse response offset it just shifts impulse without changing it. Phases changes as should be, but what causes impulse response waveform change if i do estimate time delay or set t=0 at cursor. What is the math behind this and why is that? What is happening here? REW version 5.20 beta 6

    Thanks in advance,

  2. John Mulcahy

    John Mulcahy REW Author

    Joined:
    Apr 3, 2017
    Messages:
    1,276
    Likes Received:
    215
    Please attach an example mdat file which shows the behaviour you described and say what differences you are seeing.

  3. asilas

    asilas New Member
    Thread Starter

    Joined:
    Aug 13, 2018
    Messages:
    5
    Likes Received:
    0

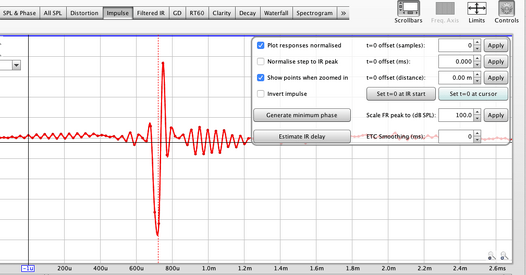

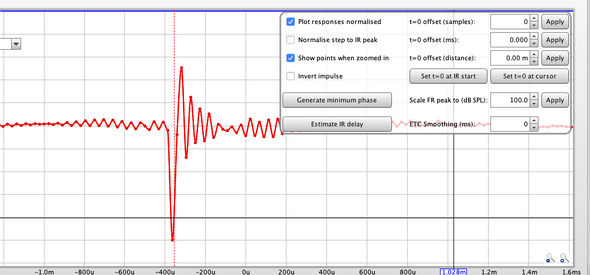

    attached the file and two screenshots before and after clicking "set t=0 at cursor
    Screenshot 2019-03-14 at 23.00.50.png Screenshot 2019-03-14 at 22.52.04.png "


    Attached Files:

  4. John Mulcahy

    John Mulcahy REW Author

    Joined:
    Apr 3, 2017
    Messages:
    1,276
    Likes Received:
    215
    The problem is that most of your impulse response is missing, there is just a small portion from about -6 ms to 16 ms, then a discontinuity at each side. Fractional sample shifts are achieved using the timeshift property of the FFT, but the discontinuities in the response generate large oscillations at frequencies at and near Nyquist. It would be better to import a complete response and apply any windowing in REW.

  5. asilas

    asilas New Member
    Thread Starter

    Joined:
    Aug 13, 2018
    Messages:
    5
    Likes Received:
    0
    Thanks,
    Understood. I measure impulse response with other programs, because on my linux pc i must use jackaudio server, but REW is not jack aware program unfortunately. But yes REW is the best on user interface compared to others!
