Impedance calibration problem on REW 5.40 beta 54

Thread Starter
Joined
Feb 8, 2018
Posts
286
Location
Italy
Hello Johon

I found a problem with the impedance calibration.
The measurement works by manually setting the Rsense Rinput and Rleads parameters while the automatic calibration by performing the three steps Open circuit Short Circuit and Reference cal indicates at the first step a difference in level of the two channels greater than 59db and cancels the calibration.
Maybe there is some incorrect reference on the software?
I checked the presence of the signals between the two input and reference channels and they are the same.

Thanks, greetings
Antonio


John Mulcahy

REW Author
Joined
Apr 3, 2017
Posts
8,099
Open circuit cal works when I try it. Can you attach a screenshot of your soundcard preferences?


John Mulcahy

REW Author
Joined
Apr 3, 2017
Posts
8,099
As above, it works for me. If you attach screenshots of your Measure dialog and soundcard preferences I can make sure I am testing with the same settings.

Thread Starter
Joined
Feb 8, 2018
Posts
286
Location
Italy

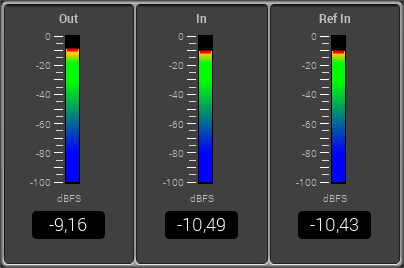

here are the screenshots of the levels measured by Rew


Attachments

  • Level_input.png
    7.6 KB · Views: 11

John Mulcahy

REW Author
Joined
Apr 3, 2017
Posts
8,099
You can check the behaviour of each input by making a normal SPL sweep measurement of the measurement input and then the ref input while all the connections are set up for an open circuit cal measurement, perhaps one or both responses are not flat for some reason.

Thread Starter
Joined
Feb 8, 2018
Posts
286
Location
Italy
Hi Jhon,
I attach the sound card and measurement settings.
The levels of both channels are identical, I verified both by measuring the response with REW and with laboratory instruments.
I inform you that up to version 5.40 beta 29 everything worked well from version beta 30 it started to give the problem of the difference in level of the audio channels.
I hope it helps you.
Best regards Antonio


Attachments

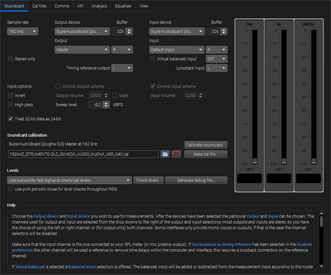

  • Setting_Soundcard.png
    71.9 KB · Views: 25

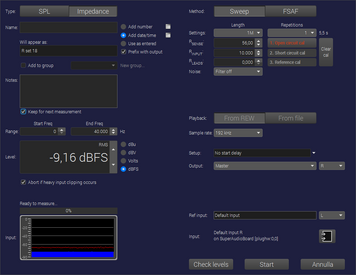

  • Setting_measurement.png
    61.3 KB · Views: 19

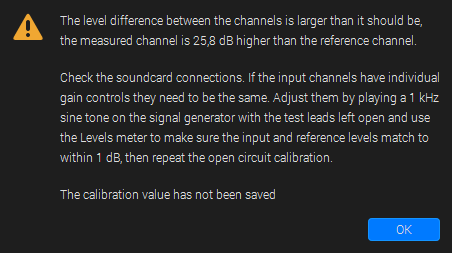

  • Calibration_not_valid.png
    11.4 KB · Views: 19
  • Calibration_not_valid-1.png
    98 bytes · Views: 26

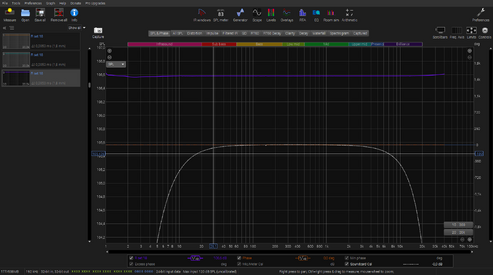

  • Risposta_Linein.png
    276.9 KB · Views: 18

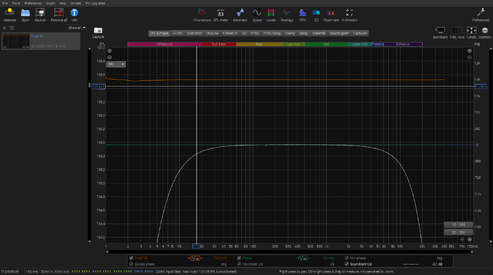

  • Risposta_LineRef.png
    295.1 KB · Views: 20

John Mulcahy

REW Author
Joined
Apr 3, 2017
Posts
8,099
The problem was the measurement end frequency. Cal measurements cover the whole frequency span and override the chosen measurement range, but that was not working properly. It has been fixed in beta 55.
