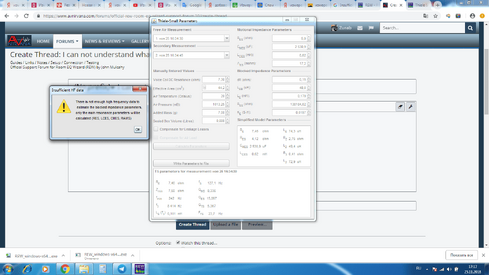

I can not understand what is "Insufficient HF data"

Discussion in 'Official REW (Room EQ Wizard) Support Forum' started by Zurab, Nov 25, 2018.

  1. Zurab

    Zurab New Member
    Thread Starter

    Joined:
    Nov 23, 2018
    Messages:
    8
    Likes Received:
    0
    Hi
    How to solve this problem?



    Attached Files:

  2. John Mulcahy

    John Mulcahy REW Author

    Joined:
    Apr 3, 2017
    Messages:
    990
    Likes Received:
    160
    The end frequency of your measurement is too low, try using 10 kHz.

  3. Zurab

    Zurab New Member
    Thread Starter

    Joined:
    Nov 23, 2018
    Messages:
    8
    Likes Received:
    0
    upload_2018-11-26_22-39-59.png I use these settings here, and I’m not calculating. Where do I need to change 10kHz

  4. Zurab

    Zurab New Member
    Thread Starter

    Joined:
    Nov 23, 2018
    Messages:
    8
    Likes Received:
    0
    upload_2018-11-26_23-17-2.png I changed the settings to 10kHz now there is no this message, but the equivalent volume is still not calculated

  5. John Mulcahy

    John Mulcahy REW Author

    Joined:
    Apr 3, 2017
    Messages:
    990
    Likes Received:
    160
    Is that after pressing Calculate parameters?

    Please post an mdat file with the measurements rather than screen shots. I also suggest using single sweeps. 7g looks like a lot of added mass for that driver by the way, the peak frequency only need to shift by 20% or so to get accurate results. High mass can cause odd behaviour.

  6. Zurab

    Zurab New Member
    Thread Starter

    Joined:
    Nov 23, 2018
    Messages:
    8
    Likes Received:
    0
    Here is my data


    Attached Files:

  7. John Mulcahy

    John Mulcahy REW Author

    Joined:
    Apr 3, 2017
    Messages:
    990
    Likes Received:
    160
    Thanks. The mass is too high for REW to locate the peak in the added mass trace. Try with a much smaller added mass, in the meantime I'll see if I can make the peak search better able to cope with small peaks.

  8. Zurab

    Zurab New Member
    Thread Starter

    Joined:
    Nov 23, 2018
    Messages:
    8
    Likes Received:
    0
    I tried to measure with different loads 1g and 4g does not work

  9. John Mulcahy

    John Mulcahy REW Author

    Joined:
    Apr 3, 2017
    Messages:
    990
    Likes Received:
    160
    OK, thanks. I've made some modifications to the code to accommodate the low peak levels, those will be in the next beta in a week or two from now. The results with the 7g test aren't very meaningful, if you attach the 1g and 4g measurements I can run those and post the results.

  10. Zurab

    Zurab New Member
    Thread Starter

    Joined:
    Nov 23, 2018
    Messages:
    8
    Likes Received:
    0
    I made these measurements
    measurements with 1g could not do


    Attached Files:

  11. John Mulcahy

    John Mulcahy REW Author

    Joined:
    Apr 3, 2017
    Messages:
    990
    Likes Received:
    160
    Thanks. How are you supporting the driver for the measurements?

  12. Zurab

    Zurab New Member
    Thread Starter

    Joined:
    Nov 23, 2018
    Messages:
    8
    Likes Received:
    0
    UR22 MkII USB

  13. John Mulcahy

    John Mulcahy REW Author

    Joined:
    Apr 3, 2017
    Messages:
    990
    Likes Received:
    160
    I was meaning physically, is the driver hung from a wire, mounted on something...

  14. Zurab

    Zurab New Member
    Thread Starter

    Joined:
    Nov 23, 2018
    Messages:
    8
    Likes Received:
    0
    YD103-12 8Om 10W

  15. John Mulcahy

    John Mulcahy REW Author

    Joined:
    Apr 3, 2017
    Messages:
    990
    Likes Received:
    160

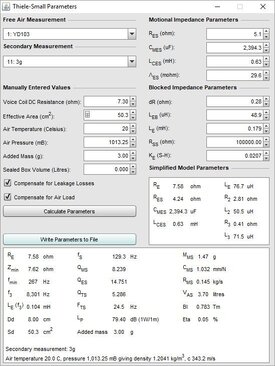

    Here are the results for 3g, 5g and 7g. The 3g measurement has the best model fit so I would have more faith in those figures.

    3g.jpg 5g.jpg 7g.jpg
