How to add lowpass to subwoofer

ShadowNeko

Registered
Thread Starter
Joined
Dec 12, 2021
Messages
1

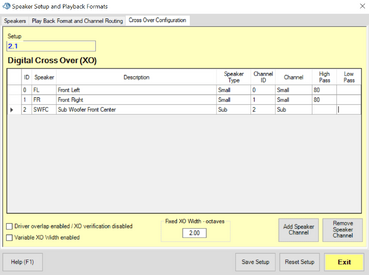

When i enter anything into the lowpass section for the sub it immediately gets erased. How do i add a lowpass to the sub?


Attachments

  • 1660774435264.png
    35.9 KB · Views: 20

whoareyou

Member
Joined
Dec 23, 2021
Messages
179
More
Main Amp
Benchmark AHB2
Additional Amp
ATI AT525NC
Computer Audio
JRiver
DAC
Exasound E38
Front Speakers
Psb synchrony one
Center Channel Speaker
PSB synchrony one C
Surround Speakers
Revel m105
You set the lfe low pass on the speaker tab:

53927



Also observe that FL and FR has different bass offloading frequencies. Those two plus the LFE cutoff means that the subwoofer has three different lowpass frequencies here. Sometimes the number can be higher.

The subwoofer will have one correction filter for LFE, another for integration with FL and a third for integration with FR. And since there is only one line for the subwoofer in the crossover tab, there isn't enough room for this info there. But for bass offloading it will always be the mirror image of the high pass frequencies entered: The same frequency and the same XO width as the high pass side.

Last edited by a moderator:

kevinzoe

Member
Joined
Jun 10, 2022
Messages
39
More
Preamp, Processor or Receiver
PrimaLuna DiaLogue Premium preamp
Main Amp
PS Audio BHK Signature 250 stereo amp
Additional Amp
Valve Amplification Company 30/30 Renaissance
Computer Audio
JRiver
DAC
exaSound e48 (8 channels)
Front Speakers
Acoustic Zen Crescendos
Subwoofers
Pair of Rythmik F15's
Other Equipment
Cables by: TEO Audio, Cardas and AudioSensibility
Here is how I add my subs with their corresponding low-pass filters per your question . . .
53939


53940


53941


Hope this helps . . .


kevinzoe

Member
Joined
Jun 10, 2022
Messages
39
More
Preamp, Processor or Receiver
PrimaLuna DiaLogue Premium preamp
Main Amp
PS Audio BHK Signature 250 stereo amp
Additional Amp
Valve Amplification Company 30/30 Renaissance
Computer Audio
JRiver
DAC
exaSound e48 (8 channels)
Front Speakers
Acoustic Zen Crescendos
Subwoofers
Pair of Rythmik F15's
Other Equipment
Cables by: TEO Audio, Cardas and AudioSensibility
Bernt - the subs are labeled "Bass" and are the first and fourth channels


juicehifi

Audiolense
Staff member
Joined
Feb 5, 2018
Messages
700
That is a good solution, kevinzoe. For anyone who uses two subs and prefers stereo bass.


Ofer

Member
Joined
Mar 15, 2021
Messages
244
More
Preamp, Processor or Receiver
miniDSP 4x10hd
Main Amp
Emotiva XPR200 midrange amp
Additional Amp
Crest audio 2001A bass amp, Crest audio 8002 sub
Other Amp
Rotel RA930ax twitter amp
Computer Audio
Sony Bravia android TV
DAC
RME FF400
Universal / Blu-ray / CD Player
Marantz original 5E CD
Front Speakers
Andromeda MkII
Subwoofers
18" OEM powered subwoofer, 18" Martycube Dayton A.
Screen
Sony bravia 65XF9005
Streaming Subscriptions
Deezer HiFi
Other Equipment
HP i5 running W10, HLC convolver for Audio Lense filters
It could also be done with one sub but it depends on your audio interface hardware configuration. Some interfaces have channels 7/8 on the same output jack. In such a case one jack can "represent" 2 outputs. In AL you could add another channel to the sub it would be termed driver 1 and driver 2. Now it is possible to have HPF and LPF for each driver, just make sure you cross the right drivers. I have tried it and it sounded awful but maybe you will be more successful.
