HELP! Sub placement - strange REW graphs?

Duc Vu

Registered
Thread Starter
Joined
Aug 3, 2022
Messages
12
My AV System
Preamp, Processor or Receiver
Denon X3700H
DAC
Soundblasterx G6
Universal / Blu-ray / CD Player
Sony X700
Front Speakers
JBL Stage A130
Center Channel Speaker
JBL Stage A125C
Surround Speakers
JBL Stage A130
Front Height Speakers
Polk V60
Rear Height Speakers
Polk V60
Subwoofers
SVS PB-1000 Pro
Video Display Device
LG OLED C9

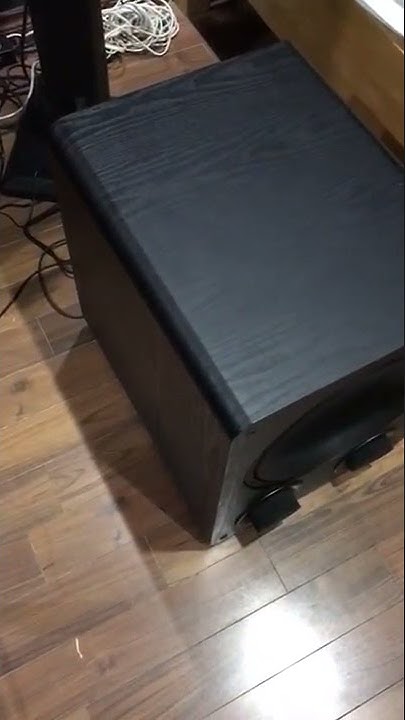

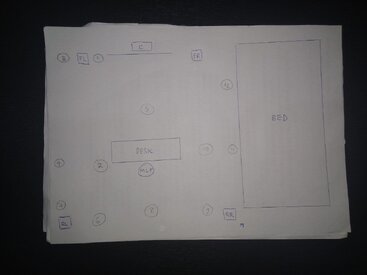

Today I have learned how to use REW, moved my sub around (1 svs pb-1000 pro) and generated the REW file for 12 possible sub placements in my room. Please check the files attached for the REW graphs and my room layout/sub positions.

Since I don't own a UMIK-1 mic or any calibrated mic, what I did was connect the Audyssey mic (that comes with my Denon X3700H) to my soundblasterx usb sound card. My desktop pc is connected to the denon via hdmi.

Before starting the measurement for each position, I disabled MultEQ XT32, set the sub's distance and level back to 0, and changed the crossover to 250Hz for all speakers. I also level-matched the front left speaker (using master volume) and the sub (using sub gain in the svs app) so the REW spl meter displayed 75db for both. Finally, I ran the sweep from 10hz to 250hz from the front left speaker.

Seems like other people already tested and confirmed that the uncalibrated Audyssey mic is accurate for measuring sub with REW so I hope what I did here was correct. The strange thing is when I look at all the graphs, there seems to be down-sloping response for the low bass from 60Hz and below. Could someone take a look at the files and help out a novice REW users? Thanks.


Attachments

FargateOne

Member
Joined
Jun 5, 2017
Messages
192
My AV System
Preamp, Processor or Receiver
Rotel RSX-1562
Additional Amp
Bryston 3B3 for fronts mains
Universal / Blu-ray / CD Player
Cambridge CXU
Front Speakers
B&W 804 D2
Center Channel Speaker
B&W HTM4D2
Surround Speakers
B&W 705
Subwoofers
SVS PC-2000 and SVS PC-2000 Pro
Other Speakers or Equipment
10 PEQ filters/channel in receiver with REW
Video Display Device
Samsung UN55ES8000
Other Equipment
miniDSP 2x4 HD
Just general information here, others are more qualified than me. I would suggest to retake your measurements (...sorry) with a timing reference (check aid menu in REW and you will find the settings) I suppose that you used Asio4All so selecty one speaker (front left or center for instance) as reference.
For my untrained eye your sub response seems odd to me. did you forget by chance a highpass filter somewhere? Others will know better hopefully


sm52

Member
Joined
Mar 14, 2019
Messages
518
The fact that the pressure drops below 100 Hz indicates some kind of improver. All improvers must be disabled when measuring. You may not need a time reference, but without it, it will not work to coordinate the sub and main speakers.


Duc Vu

Registered
Thread Starter
Joined
Aug 3, 2022
Messages
12
My AV System
Preamp, Processor or Receiver
Denon X3700H
DAC
Soundblasterx G6
Universal / Blu-ray / CD Player
Sony X700
Front Speakers
JBL Stage A130
Center Channel Speaker
JBL Stage A125C
Surround Speakers
JBL Stage A130
Front Height Speakers
Polk V60
Rear Height Speakers
Polk V60
Subwoofers
SVS PB-1000 Pro
Video Display Device
LG OLED C9
Just general information here, others are more qualified than me. I would suggest to retake your measurements (...sorry) with a timing reference (check aid menu in REW and you will find the settings) I suppose that you used Asio4All so selecty one speaker (front left or center for instance) as reference.
For my untrained eye your sub response seems odd to me. did you forget by chance a highpass filter somewhere? Others will know better hopefully
I use java. Somehow Asio4All does not detect the mic.

Sorry what do you mean by highpass filter? Where is the option for that?


Duc Vu

Registered
Thread Starter
Joined
Aug 3, 2022
Messages
12
My AV System
Preamp, Processor or Receiver
Denon X3700H
DAC
Soundblasterx G6
Universal / Blu-ray / CD Player
Sony X700
Front Speakers
JBL Stage A130
Center Channel Speaker
JBL Stage A125C
Surround Speakers
JBL Stage A130
Front Height Speakers
Polk V60
Rear Height Speakers
Polk V60
Subwoofers
SVS PB-1000 Pro
Video Display Device
LG OLED C9
The fact that the pressure drops below 100 Hz indicates some kind of improver. All improvers must be disabled when measuring. You may not need a time reference, but without it, it will not work to coordinate the sub and main speakers.
Sorry what do you mean by improver? Where can I find the settings for that?

I checked tutorials on this and they didn't mention anything about the time reference... should I set the distance of my front left speaker back to 0, just like with the sub?


John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
5,717
That roll-off may be due to noise cancellation processing, which Windows tends to apply be default to any mic input that provides stereo data (assuming that one channel is signal and the other is background noise). Make sure enhancements are not enabled on the Windows audio input properties Advanced tab (System - Sound - Related Settings on right hand side - Sound Control Panel - Recording - select the mic, click Properties button) or Enhancements tab. Some PCs may have a separate application with similar features, e,g, Waves MaXXAudio, HP Audio Center, myASUS.


sm52

Member
Joined
Mar 14, 2019
Messages
518
That roll-off may be due to noise cancellation processing, which Windows tends to apply be default
and you(Duc Vu) should also check the Sound Blaster control panel. There may also be something included that is good for listening, but not good for measuring.


Duc Vu

Registered
Thread Starter
Joined
Aug 3, 2022
Messages
12
My AV System
Preamp, Processor or Receiver
Denon X3700H
DAC
Soundblasterx G6
Universal / Blu-ray / CD Player
Sony X700
Front Speakers
JBL Stage A130
Center Channel Speaker
JBL Stage A125C
Surround Speakers
JBL Stage A130
Front Height Speakers
Polk V60
Rear Height Speakers
Polk V60
Subwoofers
SVS PB-1000 Pro
Video Display Device
LG OLED C9
That roll-off may be due to noise cancellation processing, which Windows tends to apply be default to any mic input that provides stereo data (assuming that one channel is signal and the other is background noise). Make sure enhancements are not enabled on the Windows audio input properties Advanced tab (System - Sound - Related Settings on right hand side - Sound Control Panel - Recording - select the mic, click Properties button) or Enhancements tab. Some PCs may have a separate application with similar features, e,g, Waves MaXXAudio, HP Audio Center, myASUS.

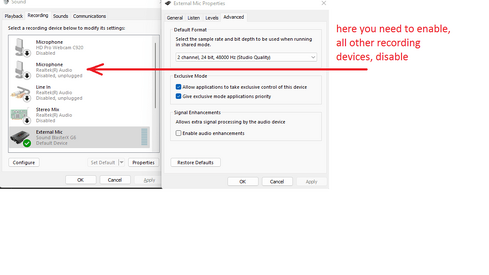

I already disabled all the processing/enhancement I could find, under both Windows and soundcard settings:
53692

53693

53694


Duc Vu

Registered
Thread Starter
Joined
Aug 3, 2022
Messages
12
My AV System
Preamp, Processor or Receiver
Denon X3700H
DAC
Soundblasterx G6
Universal / Blu-ray / CD Player
Sony X700
Front Speakers
JBL Stage A130
Center Channel Speaker
JBL Stage A125C
Surround Speakers
JBL Stage A130
Front Height Speakers
Polk V60
Rear Height Speakers
Polk V60
Subwoofers
SVS PB-1000 Pro
Video Display Device
LG OLED C9
and you(Duc Vu) should also check the Sound Blaster control panel. There may also be something included that is good for listening, but not good for measuring.
Yes I did. Please see the post above.

Edit: Probably this sound card is no good for measuring. I found out that if I enable Direct mode on the sound card (which is supposed to bypass the processor entirely), then the mic port does not work. Maybe the mic path of this sound card is routed through the processor.


sm52

Member
Joined
Mar 14, 2019
Messages
518
Probably this sound card is no good for measuring.
This is the right line of thought. If you have the ability to connect another external sound card with two inputs and two outputs, then you will get the correct results faster.


Duc Vu

Registered
Thread Starter
Joined
Aug 3, 2022
Messages
12
My AV System
Preamp, Processor or Receiver
Denon X3700H
DAC
Soundblasterx G6
Universal / Blu-ray / CD Player
Sony X700
Front Speakers
JBL Stage A130
Center Channel Speaker
JBL Stage A125C
Surround Speakers
JBL Stage A130
Front Height Speakers
Polk V60
Rear Height Speakers
Polk V60
Subwoofers
SVS PB-1000 Pro
Video Display Device
LG OLED C9
This is the right line of thought. If you have the ability to connect another external sound card with two inputs and two outputs, then you will get the correct results faster.
Unfortunately I don't have any sound card like that.

I read people having success by just plugging the mic directly into the mic port on their laptop. Mine is a win 11 desktop pc but when I plug the mic into the mic port on the front panel and use headphone to listen to the mic, sound only comes out of the left ear.


sm52

Member
Joined
Mar 14, 2019
Messages
518
when I plug the mic into the mic port on the front panel and use headphone to listen to the mic, sound only comes out of the left ear.
Maybe that's a plus to measure. You can specify this channel as an input in REW.


Duc Vu

Registered
Thread Starter
Joined
Aug 3, 2022
Messages
12
My AV System
Preamp, Processor or Receiver
Denon X3700H
DAC
Soundblasterx G6
Universal / Blu-ray / CD Player
Sony X700
Front Speakers
JBL Stage A130
Center Channel Speaker
JBL Stage A125C
Surround Speakers
JBL Stage A130
Front Height Speakers
Polk V60
Rear Height Speakers
Polk V60
Subwoofers
SVS PB-1000 Pro
Video Display Device
LG OLED C9
Maybe that's a plus to measure. You can specify this channel as an input in REW.
When I open the spl meter in REW, it shows the level fluctuates, meaning the program detects the mic. However when I, for example, clap near the mic, the meter does not jump up. Same if I play the test tone to check level. No sound seems to be picked up by the mic. So weird. At least with the sound card the meter responds well to the noise around.


jtalden

Active Member
Joined
May 22, 2017
Messages
788
Location
Arizona, USA
My AV System
Preamp, Processor or Receiver
Marantz AV7705 Pre/Pro
Main Amp
VTV 6 chnl NC252MP P-amp x 2
Additional Amp
Behringer DCX2496 x 2
Universal / Blu-ray / CD Player
OPPO BDP-103 Universal Player
Front Speakers
DIY SEAS H1456/H1212 Spkr x 5
Subwoofers
DIY JBL 2235H 15" SW x 2
Video Display Device
JVC DLA-X790R
Screen
Da-Lite Da-Snap 39105V - 92"
Before starting the measurement for each position, I disabled MultEQ XT32, set the sub's distance and level back to 0, and changed the crossover to 250Hz for all speakers.
Your measurements were taken with the signal sent to the left channel of the AVR. With the XO set to 250 Hz the left channel signal is rolled of below 250 Hz. Your measurements reflect that.
Instead, you can either:
  • Output the signal to the sub channel
  • Disable the XO in the AVR so that the left channel is not rolled off.


Duc Vu

Registered
Thread Starter
Joined
Aug 3, 2022
Messages
12
My AV System
Preamp, Processor or Receiver
Denon X3700H
DAC
Soundblasterx G6
Universal / Blu-ray / CD Player
Sony X700
Front Speakers
JBL Stage A130
Center Channel Speaker
JBL Stage A125C
Surround Speakers
JBL Stage A130
Front Height Speakers
Polk V60
Rear Height Speakers
Polk V60
Subwoofers
SVS PB-1000 Pro
Video Display Device
LG OLED C9
Your measurements were taken with the signal sent to the left channel of the AVR. With the XO set to 250 Hz the left channel signal is rolled of below 250 Hz. Your measurements reflect that.
Instead, you can either:
  • Output the signal to the sub channel
  • Disable the XO in the AVR so that the left channel is not rolled off.
I thought when I set the crossover in the AVR to 250hz, it meant all the frequencies below 250hz would be sent to the sub instead of the front left, meaning I was effectively measuring the sub? I can felt the rumble from the sub when the measurement sweep was running.

Last edited:

Duc Vu

Registered
Thread Starter
Joined
Aug 3, 2022
Messages
12
My AV System
Preamp, Processor or Receiver
Denon X3700H
DAC
Soundblasterx G6
Universal / Blu-ray / CD Player
Sony X700
Front Speakers
JBL Stage A130
Center Channel Speaker
JBL Stage A125C
Surround Speakers
JBL Stage A130
Front Height Speakers
Polk V60
Rear Height Speakers
Polk V60
Subwoofers
SVS PB-1000 Pro
Video Display Device
LG OLED C9
Did you do it?
This screenshot was taken when the mic was still plugged into the soundblaster. That's why I only enabled the mic input on the soundblaster and disabled the rest. If I plug the mic into the front panel mic port of the pc instead then yes Realtek input will be enabled.


FargateOne

Member
Joined
Jun 5, 2017
Messages
192
My AV System
Preamp, Processor or Receiver
Rotel RSX-1562
Additional Amp
Bryston 3B3 for fronts mains
Universal / Blu-ray / CD Player
Cambridge CXU
Front Speakers
B&W 804 D2
Center Channel Speaker
B&W HTM4D2
Surround Speakers
B&W 705
Subwoofers
SVS PC-2000 and SVS PC-2000 Pro
Other Speakers or Equipment
10 PEQ filters/channel in receiver with REW
Video Display Device
Samsung UN55ES8000
Other Equipment
miniDSP 2x4 HD
I thought when I set the crossover in the AVR to 250hz, it meant all the frequencies below 250hz would be sent to the sub instead of the front left, meaning I was effectively measuring the sub? I can felt the rumble from the sub when the measurement sweep was running.
Yes but you measured the left front reponse as @jtalden findout. Disconnect the left speaker and send the signal to it and you will get the sub only or, measure the sub channel by itself.


Duc Vu

Registered
Thread Starter
Joined
Aug 3, 2022
Messages
12
My AV System
Preamp, Processor or Receiver
Denon X3700H
DAC
Soundblasterx G6
Universal / Blu-ray / CD Player
Sony X700
Front Speakers
JBL Stage A130
Center Channel Speaker
JBL Stage A125C
Surround Speakers
JBL Stage A130
Front Height Speakers
Polk V60
Rear Height Speakers
Polk V60
Subwoofers
SVS PB-1000 Pro
Video Display Device
LG OLED C9
Yes but you measured the left front reponse as @jtalden findout. Disconnect the left speaker and send the signal to it and you will get the sub only or, measure the sub channel by itself.
I don't understand why I still have to disconnect the left speaker... Since the crossover is set to 250hz, and the sweep plays from 10hz to 250hz, only the sub will emit sound, no?


FargateOne

Member
Joined
Jun 5, 2017
Messages
192
My AV System
Preamp, Processor or Receiver
Rotel RSX-1562
Additional Amp
Bryston 3B3 for fronts mains
Universal / Blu-ray / CD Player
Cambridge CXU
Front Speakers
B&W 804 D2
Center Channel Speaker
B&W HTM4D2
Surround Speakers
B&W 705
Subwoofers
SVS PC-2000 and SVS PC-2000 Pro
Other Speakers or Equipment
10 PEQ filters/channel in receiver with REW
Video Display Device
Samsung UN55ES8000
Other Equipment
miniDSP 2x4 HD
I've learned a lot about bass management searching on Internet and doing so could help you too. Long story short, crossover means a highpass filter for high FR going to the left speaker and a lowpass filter for 250Hz and below going to the sub. Also the 250 Hz limit is not a brick in wall but like a downward curve beginning one octave before (125Hz ) going one octave after ( 500Hz)


jtalden

Active Member
Joined
May 22, 2017
Messages
788
Location
Arizona, USA
My AV System
Preamp, Processor or Receiver
Marantz AV7705 Pre/Pro
Main Amp
VTV 6 chnl NC252MP P-amp x 2
Additional Amp
Behringer DCX2496 x 2
Universal / Blu-ray / CD Player
OPPO BDP-103 Universal Player
Front Speakers
DIY SEAS H1456/H1212 Spkr x 5
Subwoofers
DIY JBL 2235H 15" SW x 2
Video Display Device
JVC DLA-X790R
Screen
Da-Lite Da-Snap 39105V - 92"
I thought when I set the crossover in the AVR to 250hz, it meant all the frequencies below 250hz would be sent to the sub instead of the front left, meaning I was effectively measuring the sub? I can felt the rumble from the sub when the measurement sweep was running.
Yes, you are correct.


Duc Vu

Registered
Thread Starter
Joined
Aug 3, 2022
Messages
12
My AV System
Preamp, Processor or Receiver
Denon X3700H
DAC
Soundblasterx G6
Universal / Blu-ray / CD Player
Sony X700
Front Speakers
JBL Stage A130
Center Channel Speaker
JBL Stage A125C
Surround Speakers
JBL Stage A130
Front Height Speakers
Polk V60
Rear Height Speakers
Polk V60
Subwoofers
SVS PB-1000 Pro
Video Display Device
LG OLED C9
@FargateOne
@sm52
@John Mulcahy

Hey guys. Some good news.

This morning I tried plugging the Audyssey mic into the Mic Input on the back panel of my pc and Voila!

Calibrated the SPL meter inside REW using the Decibel X app on the iphone. Adjust the avr master volume/sub gain so the SPL meter shows 75db for main speakers and 75-76db for sub. Check Level comes out perfect. Attached is the new measurement file for all 12 positions. No more downslopping. The peaks/nulls are still roughly at the frequencies expected.

This is Position 1 vs Position 12:



A new candidate is Position 5. Looks like the best of both world. But that puts the sub right in front of where I sit, blocking the avr, so not very ideal.



I notice a strange thing at Position 5: if I rotate the sub by 90 degree, the frequency response changes:



I ran Audyssey at Position 1 and Position 12 before so below are what MultEQ/DEQ do to the frequency response:



Any advice on what to do next is welcomed.


sm52

Member
Joined
Mar 14, 2019
Messages
518
I notice a strange thing at Position 5: if I rotate the sub by 90 degree, the frequency response changes:
any change in the position of the subwoofer or its orientation will change the sound picture.
When I tried to find the position of the sub to get the most even response, I settled on the position down. That is, the driver looks at the floor at a distance of 7-8 cm from the floor. The sub cannot hang in the air, so I made a rack for this position.
Further, there may be smoothing the characteristics with the help of EQ or docking the sub with the main speakers.


Duc Vu

Registered
Thread Starter
Joined
Aug 3, 2022
Messages
12
My AV System
Preamp, Processor or Receiver
Denon X3700H
DAC
Soundblasterx G6
Universal / Blu-ray / CD Player
Sony X700
Front Speakers
JBL Stage A130
Center Channel Speaker
JBL Stage A125C
Surround Speakers
JBL Stage A130
Front Height Speakers
Polk V60
Rear Height Speakers
Polk V60
Subwoofers
SVS PB-1000 Pro
Video Display Device
LG OLED C9
any change in the position of the subwoofer or its orientation will change the sound picture.
When I tried to find the position of the sub to get the most even response, I settled on the position down. That is, the driver looks at the floor at a distance of 7-8 cm from the floor. The sub cannot hang in the air, so I made a rack for this position.
Further, there may be smoothing the characteristics with the help of EQ or docking the sub with the main speakers.
Today I also notice my sub makes this kind of rattling noise when it's driven loud. Do you think this is normal? Please wear headphones and increase the volume to hear it better (beside the woofer noise there's a faint rattling noise)

Top Bottom
