Hello,

I here propose, for possessors of headphones Gold Planar GL600, a DSP configuration usable in the free software EqualizerAPO, allowing to "mimic", at some degree, the sound that you would perceive when listening a stereo (or 7.1) system in a small/medium living room.
I simply want to share the files, without entering too much into the technical details, so that anyone can try it and, maybe, give positive or negative feedbacks about it.

Required:
  • gold planar GL600 headphones,
  • windows OS with EqualizerAPO software installed
Instructions:
  1. install, if not already done, EqualizerAPO. It is a free software available here: https://sourceforge.net/projects/equalizerapo/. EqualizerAPO allows to apply sound effects on the signal path before being outputted from the soundcard. Among other effects, it is mainly used here to convolve the 8 channels with binaural room impulses responses (BRIRs) that I've made myself.
  2. download the folder that contains every settings and files required to be used in EqualizerAPO here: https://drive.google.com/file/d/18QD-__K...sp=sharing
  3. unzip the folder here: "C:\Program Files\EqualizerAPO\config"
  4. configure the soundcard setup to stereo or 7.1, with all speakers being fully capable to cover the entire spectrum, and configure the sampling rate to 44.1khz or 192khz. Warning: if you load a configuration file with an unappropriate number of speakers and unappropriate sampling rate, the convolution will mess up and the audio output may be excessively high, potentially causing hardware damage or ears damage. I recommand to UNWIRE the headphones and/or headphones amplifier from the soundcard output, or to lower the volume if it can be done in the hardware (volume button from headphones amplifier for example), before loading any configuration files into EqualizerAPO. Configuring the soundcard output to 7.1 allows to make windows send the 8 audio signals, before being convolved and mixed down to stereo with EqualizerAPO and sent to your headphones through any stereo output. If your soundcard doesn't support 7.1 setup, or you don't want to listen 7.1 channels audio content, you can still use stereo.
  5. load the appropriate configuration file into EqualizerAPO by adding into the "config.txt" file an effect "include configuration file" and set it to load the appropriate file. For exemple, if your soundcard is configured to stereo and 44.1khz, you should load the file "config_gl600_44100hz_stereo_room_blocked_ear_with_reverb_v2020-12-30.txt" that should be located into "C:\Program Files\EqualizerAPO\config\".

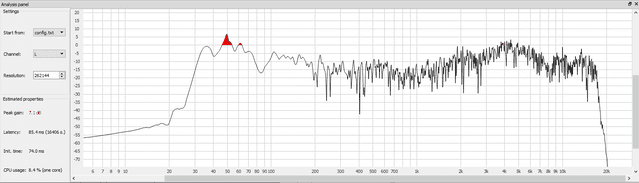

The configuration editor of EqualizerAPO should look like this:


If it's not the case, for example if the frequency response is overclipping by more than 30dB or is more smooth or is looking like a comb filter, than it is likely that the soundcard output is not configured with the appropriate number of speakers and/or the appropriate sampling rate. Verify the soundcard output settings, then try to deactivate/reactivate the output, and eventually exit and open again the configuration editor of EqualizerAPO.

For comparison purposes, I have also included a configuration file "config_clear.txt", that you can switch to to compare 'binaural listening' and 'standard listening, with no correction'.

Configuration for Hifiman HE400i
If any of you possess the headphones Hifiman HE400i, old version -not the 2020 version-, just tell me and I can also upload the settings for these headphones.

Friendly,
Jean.
