Fixing a null at MLP

greg90

Member
Thread Starter
Joined
Apr 3, 2024
Messages
34
More
Preamp, Processor or Receiver
Onkyo TX-NR7100
Additional Amp
Crown XLS 2502
Subwoofers
SI HT 18
Other Speakers
Minidsp 2x4HD
Ran REW on my subs (on front wall) last night and I have a huge null at 34hz or so. Tried moving subs a little but moving them isn’t really an option. Tried to eq it on rew then on my minidsp 2x4hd. I was able to bring it up some but would have to boost the frequency way too high so I don't want to do that. Used a room mode calculator and have an axial mode around that frequency (not sure if that’s the way to phrase it). Do I try adding a sub to the back wall or more acoustic treatment and bass traps on corners or something else? Currently have panels on my first reflection points for mains and then two on the back wall and two on the front


Travis Ballstadt

Administrator
Staff member
Joined
Jul 26, 2017
Messages
1,243
Location
Seattle, WA
More
Preamp, Processor or Receiver
Anthem AVM60
Main Amp
Emotiva BasX 5
Additional Amp
Emotiva UPA-500
Universal / Blu-ray / CD Player
Kaleidescape Strato C/Terra 48TB/Compact Terra 6TB
Streaming Equipment
PLEX Server, AppleTV4K, Bluesound Node2i
Streaming Subscriptions
AppleTV+, Amazon Prime, HBO Max
Front Speakers
NextLevel Acoustics Reference Cinema
Center Channel Speaker
NextLevel Acoustics Reference Cinema
Surround Speakers
NextLevel Acoustics Reference Cinema
Front Height Speakers
NextLevel Acoustics Angled Satellite
Rear Height Speakers
NextLevel Acoustics Angled Satellite
Subwoofers
SVS SB2000 x2
Screen
SeymourAV Proscenium 124” diagonal 2.40:1
Video Display Device
JVC DLA X790R, Lumagen Radiance Pro 4240
Remote Control
Unfolded Circle Remote 2, powered by HomeAssistant
Satellite System
They still have those?
Other Equipment
Rega Planar 6, Rega Exact2 cart, Rega Aria Mk3 Phono Stage, Jolida JD202BRC, Rega RS-5 Speakers (2-channel system)
The best placement for dual subs is in opposing corners. I'm unable to do that, so I have one in the front corner and one about 70% of the way back on the opposite wall. Does a pretty solid job. Unfortunately the best placement for the second sub would be right on top of my desk.

Moving your subs or moving your seating are really the only good ways to get ride of a null. You can use the MiniDSP to improve upon it, first with time and phase alignment, but then with a little EQ. You're right in not wanting to overcorrect with EQ. Unfortunately you're also looking at needing to rearrange the room for best results.


greg90

Member
Thread Starter
Joined
Apr 3, 2024
Messages
34
More
Preamp, Processor or Receiver
Onkyo TX-NR7100
Additional Amp
Crown XLS 2502
Subwoofers
SI HT 18
Other Speakers
Minidsp 2x4HD
The best placement for dual subs is in opposing corners. I'm unable to do that, so I have one in the front corner and one about 70% of the way back on the opposite wall. Does a pretty solid job. Unfortunately the best placement for the second sub would be right on top of my desk.

Moving your subs or moving your seating are really the only good ways to get ride of a null. You can use the MiniDSP to improve upon it, first with time and phase alignment, but then with a little EQ. You're right in not wanting to overcorrect with EQ. Unfortunately you're also looking at needing to rearrange the room for best results.
I can’t move the room much. I have all my seating set up for atmos with in ceiling speakers. Hmm thoughts on adding a couple smaller subs on the back wall and time aligning? Also started looking at hemholtz resonators for that frequency?


Travis Ballstadt

Administrator
Staff member
Joined
Jul 26, 2017
Messages
1,243
Location
Seattle, WA
More
Preamp, Processor or Receiver
Anthem AVM60
Main Amp
Emotiva BasX 5
Additional Amp
Emotiva UPA-500
Universal / Blu-ray / CD Player
Kaleidescape Strato C/Terra 48TB/Compact Terra 6TB
Streaming Equipment
PLEX Server, AppleTV4K, Bluesound Node2i
Streaming Subscriptions
AppleTV+, Amazon Prime, HBO Max
Front Speakers
NextLevel Acoustics Reference Cinema
Center Channel Speaker
NextLevel Acoustics Reference Cinema
Surround Speakers
NextLevel Acoustics Reference Cinema
Front Height Speakers
NextLevel Acoustics Angled Satellite
Rear Height Speakers
NextLevel Acoustics Angled Satellite
Subwoofers
SVS SB2000 x2
Screen
SeymourAV Proscenium 124” diagonal 2.40:1
Video Display Device
JVC DLA X790R, Lumagen Radiance Pro 4240
Remote Control
Unfolded Circle Remote 2, powered by HomeAssistant
Satellite System
They still have those?
Other Equipment
Rega Planar 6, Rega Exact2 cart, Rega Aria Mk3 Phono Stage, Jolida JD202BRC, Rega RS-5 Speakers (2-channel system)
I can’t move the room much. I have all my seating set up for atmos with in ceiling speakers. Hmm thoughts on adding a couple smaller subs on the back wall and time aligning? Also started looking at hemholtz resonators for that frequency?

Room diagram/dimensions would help, but adding subs at the rear would most definitely be the fastest way to fixing your problem.


greg90

Member
Thread Starter
Joined
Apr 3, 2024
Messages
34
More
Preamp, Processor or Receiver
Onkyo TX-NR7100
Additional Amp
Crown XLS 2502
Subwoofers
SI HT 18
Other Speakers
Minidsp 2x4HD
Room diagram/dimensions would help, but adding subs at the rear would most definitely be the fastest way to fixing your problem.
I don’t have any updated pictures with me but it’s rectangle 22L 15.5W 8ft ceilings


Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
9,711
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
DAC
THX ONYX
Computer Audio
AudioEngine A2+
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Video Display Device
JVC NX7
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
Agree with Travis... your only options are move seating, or add a sub. Pretty much zero chance you can add any sort of treatments to effect any change.

Do you have room in the rear to add a second sub (that matches the sub in the front)?


greg90

Member
Thread Starter
Joined
Apr 3, 2024
Messages
34
More
Preamp, Processor or Receiver
Onkyo TX-NR7100
Additional Amp
Crown XLS 2502
Subwoofers
SI HT 18
Other Speakers
Minidsp 2x4HD
Agree with Travis... your only options are move seating, or add a sub. Pretty much zero chance you can add any sort of treatments to effect any change.

Do you have room in the rear to add a second sub (that matches the sub in the front)?

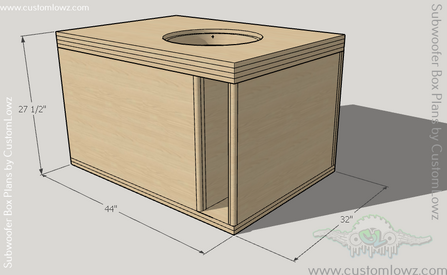

i don’t think I’ll able to fit one of them in the back because they are very large and I have to fit an air hockey table back there (for the kids) but I can do some measurements when I get home and see if it will fit underneath. My sub set up is a little different I have them ran in series together and then to one input on the amp. I was kind of hoping I could maybe get a smaller one and put it on the back wall. I will go home and measure my seating as well. I just don’t know how far forward I can go before my front Atmos speakers end up to close to me and my rears too far away.


Travis Ballstadt

Administrator
Staff member
Joined
Jul 26, 2017
Messages
1,243
Location
Seattle, WA
More
Preamp, Processor or Receiver
Anthem AVM60
Main Amp
Emotiva BasX 5
Additional Amp
Emotiva UPA-500
Universal / Blu-ray / CD Player
Kaleidescape Strato C/Terra 48TB/Compact Terra 6TB
Streaming Equipment
PLEX Server, AppleTV4K, Bluesound Node2i
Streaming Subscriptions
AppleTV+, Amazon Prime, HBO Max
Front Speakers
NextLevel Acoustics Reference Cinema
Center Channel Speaker
NextLevel Acoustics Reference Cinema
Surround Speakers
NextLevel Acoustics Reference Cinema
Front Height Speakers
NextLevel Acoustics Angled Satellite
Rear Height Speakers
NextLevel Acoustics Angled Satellite
Subwoofers
SVS SB2000 x2
Screen
SeymourAV Proscenium 124” diagonal 2.40:1
Video Display Device
JVC DLA X790R, Lumagen Radiance Pro 4240
Remote Control
Unfolded Circle Remote 2, powered by HomeAssistant
Satellite System
They still have those?
Other Equipment
Rega Planar 6, Rega Exact2 cart, Rega Aria Mk3 Phono Stage, Jolida JD202BRC, Rega RS-5 Speakers (2-channel system)
It might not seem easy, but I'd recommend moving one of your existing subs into the location and take some measurements, make sure that it's going to work before buying anything. It should unless there's something else working against you.


greg90

Member
Thread Starter
Joined
Apr 3, 2024
Messages
34
More
Preamp, Processor or Receiver
Onkyo TX-NR7100
Additional Amp
Crown XLS 2502
Subwoofers
SI HT 18
Other Speakers
Minidsp 2x4HD
It might not seem easy, but I'd recommend moving one of your existing subs into the location and take some measurements, make sure that it's going to work before buying anything. It should unless there's something else working against you.
So I made the move and moved my seating back a foot or so still playing around with sub position. There’s still a null but more gradual and not so deep.


Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
9,711
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
DAC
THX ONYX
Computer Audio
AudioEngine A2+
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Video Display Device
JVC NX7
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
I would definitely recommend *not* going with a smaller sub to match. That's going to introduce different issues and I think you'll ultimately end up more frustrated.

how far is seating off the front wall?


greg90

Member
Thread Starter
Joined
Apr 3, 2024
Messages
34
More
Preamp, Processor or Receiver
Onkyo TX-NR7100
Additional Amp
Crown XLS 2502
Subwoofers
SI HT 18
Other Speakers
Minidsp 2x4HD
I would definitely recommend *not* going with a smaller sub to match. That's going to introduce different issues and I think you'll ultimately end up more frustrated.

how far is seating off the front wall?
I got things moved around last night and ended up getting a lot better response and edited a fairly decent curve in REW(I’m really new to REW) but I need to get my levels higher and do it again. Right now my MLP is 14 feet off the front wall. I moved seating back about a foot for my measurements last night. I also tried measuring a couple feet in front of my original MLP and got a terrible response, but I might try a little closer tonight because I hate pushing my seating so far back.


Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
9,711
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
DAC
THX ONYX
Computer Audio
AudioEngine A2+
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Video Display Device
JVC NX7
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
Just in looking at some room simulations... with your couch 14 ft off the front wall, you can get a pretty decent response with the sub placed here...

Screenshot 2024-08-09 at 1.16.02 PM.png



And if you add in a second sub, here, you get a nice lift and smoother predicted response...
Screenshot 2024-08-09 at 1.16.43 PM.png


Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
9,711
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
DAC
THX ONYX
Computer Audio
AudioEngine A2+
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Video Display Device
JVC NX7
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
Here's a sim of single sub with the couch 13ft off the front wall...

Screenshot 2024-08-09 at 1.20.05 PM.png


Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
9,711
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
DAC
THX ONYX
Computer Audio
AudioEngine A2+
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Video Display Device
JVC NX7
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
Try that placement in your room and see what kind of response you can measure. Microphone pointed toward the ceiling, placed at ear level at the middle listening position.

The simulation can't predict your room exactly, for obvious reasons... and perhaps you've already tried your sub there?


Travis Ballstadt

Administrator
Staff member
Joined
Jul 26, 2017
Messages
1,243
Location
Seattle, WA
More
Preamp, Processor or Receiver
Anthem AVM60
Main Amp
Emotiva BasX 5
Additional Amp
Emotiva UPA-500
Universal / Blu-ray / CD Player
Kaleidescape Strato C/Terra 48TB/Compact Terra 6TB
Streaming Equipment
PLEX Server, AppleTV4K, Bluesound Node2i
Streaming Subscriptions
AppleTV+, Amazon Prime, HBO Max
Front Speakers
NextLevel Acoustics Reference Cinema
Center Channel Speaker
NextLevel Acoustics Reference Cinema
Surround Speakers
NextLevel Acoustics Reference Cinema
Front Height Speakers
NextLevel Acoustics Angled Satellite
Rear Height Speakers
NextLevel Acoustics Angled Satellite
Subwoofers
SVS SB2000 x2
Screen
SeymourAV Proscenium 124” diagonal 2.40:1
Video Display Device
JVC DLA X790R, Lumagen Radiance Pro 4240
Remote Control
Unfolded Circle Remote 2, powered by HomeAssistant
Satellite System
They still have those?
Other Equipment
Rega Planar 6, Rega Exact2 cart, Rega Aria Mk3 Phono Stage, Jolida JD202BRC, Rega RS-5 Speakers (2-channel system)
Just in looking at some room simulations... with your couch 14 ft off the front wall, you can get a pretty decent response with the sub placed here...

And if you add in a second sub, here, you get a nice lift and smoother predicted response...

Noting the first post, I do believe he has two subs already, both placed along the front wall. He's considered adding a 3rd smaller sub in the rear of the room.


greg90

Member
Thread Starter
Joined
Apr 3, 2024
Messages
34
More
Preamp, Processor or Receiver
Onkyo TX-NR7100
Additional Amp
Crown XLS 2502
Subwoofers
SI HT 18
Other Speakers
Minidsp 2x4HD
So I have two subs currently. Right now they are both placed in the center of the front and back wall. I don’t know if I’ll be able to go in the corner because it’s going push my main really far in just because of the enclosure size. Here’s my enclosure for my subs. Two of the same. I have it rear port and downward firing a few inches off the ground


Attachments

  • outside dimensions.png
    outside dimensions.png
    200.1 KB · Views: 5

Sonnie Parker

Senior Admin
Staff member
Joined
Apr 2, 2017
Messages
5,689
Location
Alabama
More
Preamp, Processor or Receiver
StormAudio ISP Elite 24 MK3 Processor
Main Amp
McIntosh MC1.25KW Monoblock Amps
Additional Amp
StormAudio PA 16 MK3
Music Server
ROON Nucleus One
Universal / Blu-ray / CD Player
Panasonic UB9000 4K UHD Player
Streaming Equipment
Kaleidescape
Lenovo X1 Carbon
Apple TV 4K
FireCube 3
Streaming Subscriptions
Lifetime Roon Subscription
Tidal
qobuz
Netflix
Amazon Prime
Other Equipment
Zero Surge 8R15W-1
Zero Surge 2R20W
Front Speakers
RTJ 410
Front Wide Speakers
JTR Neosis 110HT
Center Channel Speaker
MartinLogan Focus C-18
Surround Speakers
JTR Neosis 210RT
Surround Back Speakers
JTR Neosis 210RT
Front Height Speakers
JTR Neosis 110HT-SL
Middle Height Speakers
JTR Neosis 110HT-SL
Rear Height Speakers
JTR Neosis 110HT-SL
Subwoofers
JTR Captivators - 4000ULF-TL x2 + 2400 x6
Video Display Device
Sony 98X90L
Remote Control
AVA Cinema
Cables
AudioQuest - Various
THX PixelGen HDMI
Pangea Power Cables
Custom Cables
Satellite System
Dish Joey 4K
Network/Internet
C-Spire 1Gig Fiber
Omada OC300 Controller
Omada ER8411 10G Router
Omada SG3218XP-M2 10G/2.5G Managed Switch
Omada SG2210XMP-M2 10G/2.5G Managed Switch
SilentPower LAN iPurifier Pro (for Nucleus One)
Other Equipment
Salamander Synergy Equipment Stand
VTI Amp Stands for the Monoblocks
Headphones/IEMs
HIFIMAN HE1000se
Unique Melody Mest MKII
Headphone DAC/Amp
Eversolo DMP-A6
RME ADI-2 DAC FS
HIFIMAN Goldenwave Serenade
Whole House System
HEOS System
Home-150 Speaker x6
Samsung S9 Tablet w/ HEOS
Office/Study System
Office System
Dell Precision Computer
Roon Networked
Vanatoo Transparent One Encore Plus Speakers
Secondary/Additional Room System
AV Test Room System
NAD M33 Streaming DAC Amp
MartinLogan Motion XT F200
JTR Captivator RS1
miniDSP EARS
Zero Surge 8R15W-1
Zero Surge 2R20W
Dell Optiplex
Roon Networked
Secondary/Additional Room System
Sunroom System
Denon AVR-X1800H HEOS Receiver
Soundfield Custom Speakers
Dayton Audio IO8XTW Outdoor Speakers
Roon Networked
Dish Joey
JVC 37" TV
Secondary/Additional Room System
Cabin System
Onkyo TX-SR805 Receiver
Infinity Primus P163 Speakers
RSL Outsiders Outdoor Speakers
Shield TV Pro
Sony 55" TV
Secondary/Additional Room System
Vinyl Room
Accuphase E-280 Integrated Amp
Technics SL-1210GR2 Turntable
Ortofon 2M Blue Cartridge
KLH Model Three Speakers
Zero Surge 8R15W-1
Are the drivers firing up? I would try to fire one of them into the corner.

You can also try changing the distance on just one of the subs... make it 5ft (or 5ms) farther away.

I know that might sound a little wonky, but it can work and you'll never notice that small of a timing difference.


Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
9,711
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
DAC
THX ONYX
Computer Audio
AudioEngine A2+
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Video Display Device
JVC NX7
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
So I have two subs currently. Right now they are both placed in the center of the front and back wall. I don’t know if I’ll be able to go in the corner because it’s going push my main really far in just because of the enclosure size. Here’s my enclosure for my subs. Two of the same. I have it rear port and downward firing a few inches off the ground

Argh… my bad. I totally blew that one!


greg90

Member
Thread Starter
Joined
Apr 3, 2024
Messages
34
More
Preamp, Processor or Receiver
Onkyo TX-NR7100
Additional Amp
Crown XLS 2502
Subwoofers
SI HT 18
Other Speakers
Minidsp 2x4HD
Update. Got a better response. Subs are placed. Middle of front and middle of back about 6” off the wall. Have 1 EQ setting done for my minidsp. Not perfect but huge improvement so far


Gerry Iaria

Moderator
Staff member
Joined
Nov 10, 2018
Messages
206
Location
Portugal
More
Preamp, Processor or Receiver
Marantz Cinema 50
Universal / Blu-ray / CD Player
Sony X800
Streaming Equipment
Apple
Streaming Subscriptions
Apple,Netflix, Prime, Skyanytime
Front Speakers
Arendal 1961 monitors
Center Channel Speaker
Arendal 1961 centre monitor
Surround Speakers
Altec c1
Surround Back Speakers
Totem Acoustic Dream catcher
Subwoofers
Arendal Sub1- Ken Kreisel 800
Screen
Samsung S95C 77inch
Remote Control
yes, L.O.L
Update. Got a better response. Subs are placed. Middle of front and middle of back about 6” off the wall. Have 1 EQ setting done for my minidsp. Not perfect but huge improvement so far
Nice job there greg90 :T


Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
9,711
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
DAC
THX ONYX
Computer Audio
AudioEngine A2+
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Video Display Device
JVC NX7
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
Excellent. Glad you're getting some improvement!

Top Bottom
