Epson's HC5050ub Projector

Discussion in 'Projectors and Projection Screens' started by mechman, May 3, 2019.

  1. mechman

    mechman Senior Admin
    Staff Member
    Thread Starter

    Joined:
    Apr 4, 2017
    Messages:
    777
    Likes Received:
    155
    Location:
    Empire Township, MN
    Epson has finally released it's replacement for the much celebrated 5040ub/ube line of projectors. I took that opportunity to update my 5040ube to a 5050ub and I'll post my calibration narrative here. All of these readings below are using SDR mode to measure except for Digital Cinema. Digital Cinema and Cinema are the two modes which engage the color filter to get expanded gamut coverage. The other modes do not engage that filter. In hindsight, I probably should have gotten some HDR readings from Cinema mode but from my experience with the 5040ube I've found that Digital Cinema is generally the much better mode for HDR.

    Pre-Calibration

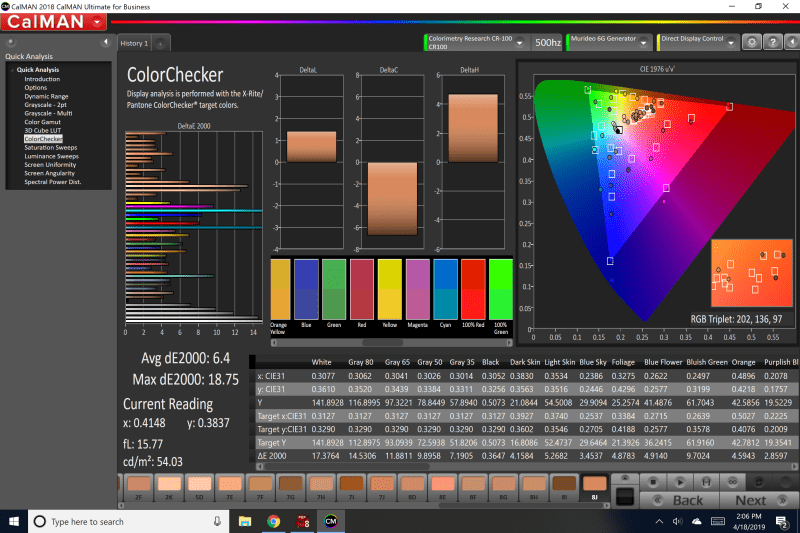

    Dynamic

    Average DeltaE of 6.4

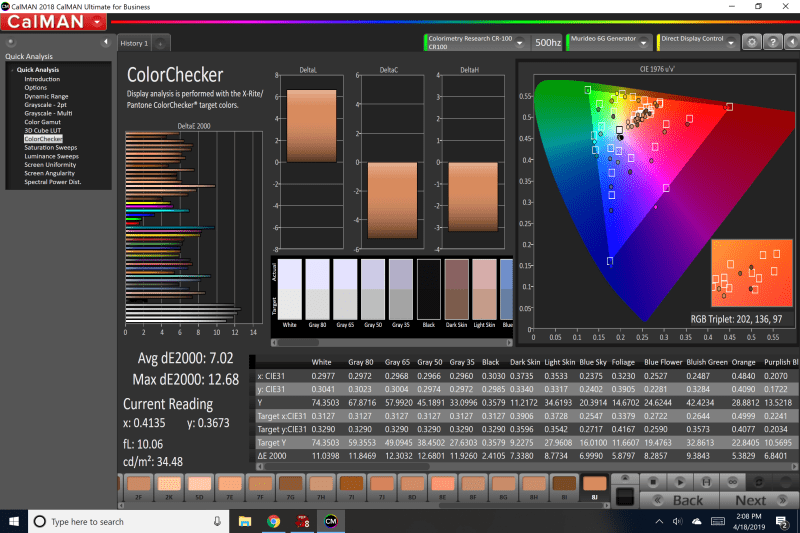

    Bright Cinema

    Average DeltaE of 7.02

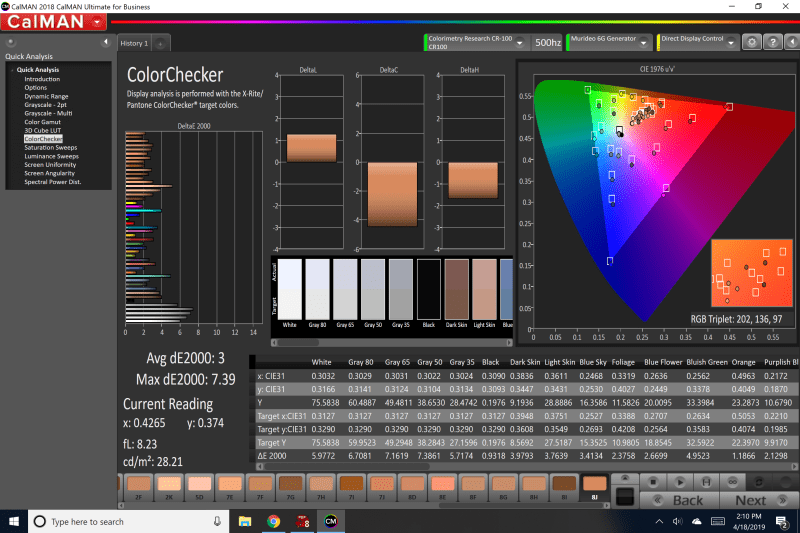

    Natural

    Average DeltaE of 3

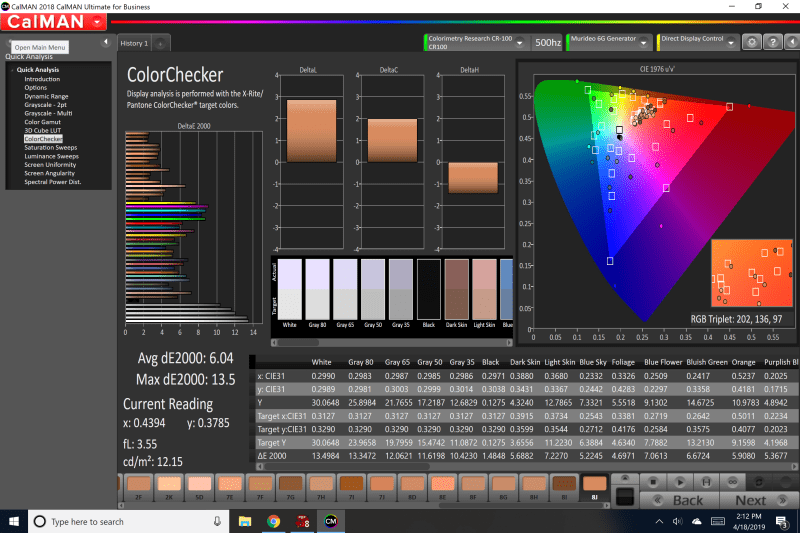

    Cinema

    Average DeltaE of 6.04

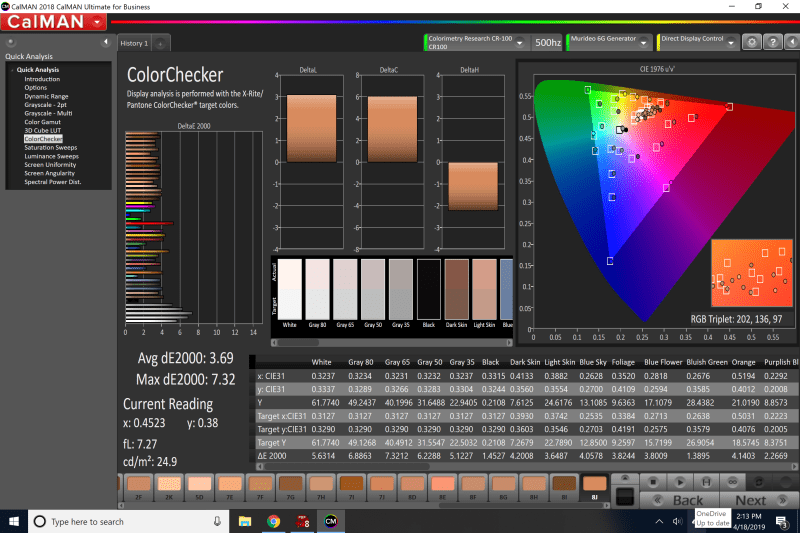

    BW Cinema

    Average DeltaE of 3.69

    Digital Cinema

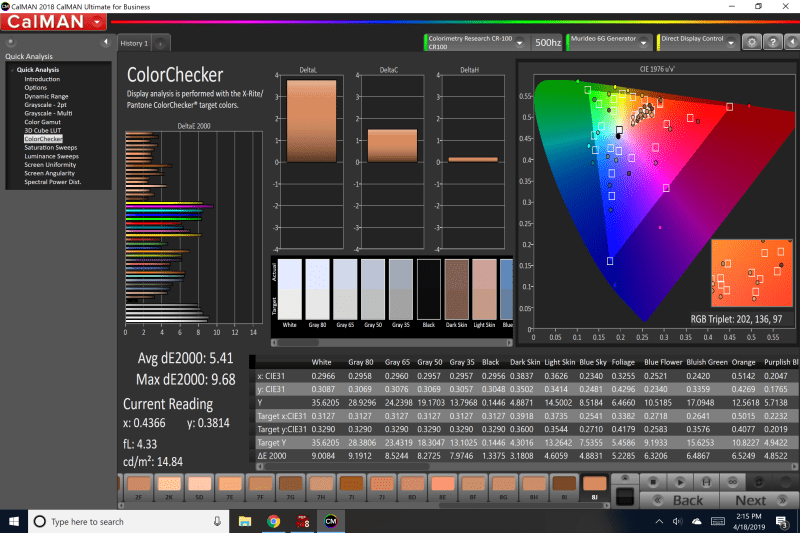

    SDR

    Average DeltaE of 5.41

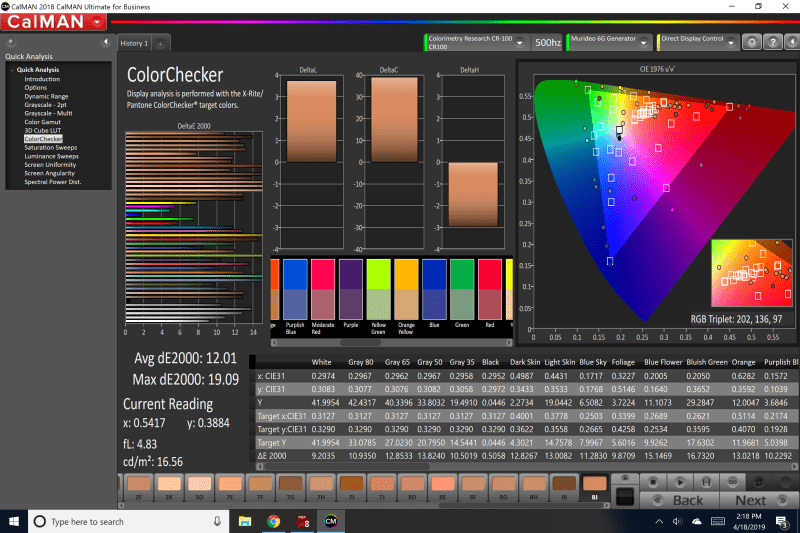

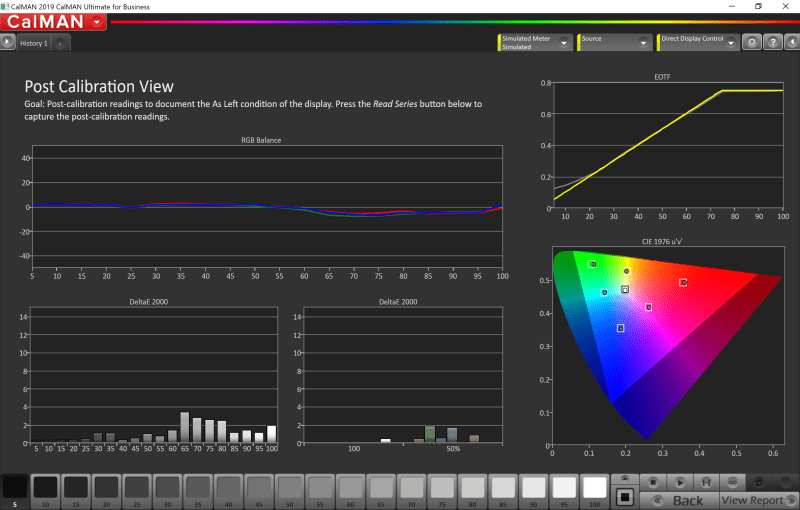

    HDR

    Average DeltaE of 12.01

    Looking at the numbers, Natural mode looks outstanding out of the box for SDR with a DeltaE of 3. The rest of the modes look to fall within the realm of what you would see with similar displays out of the box.

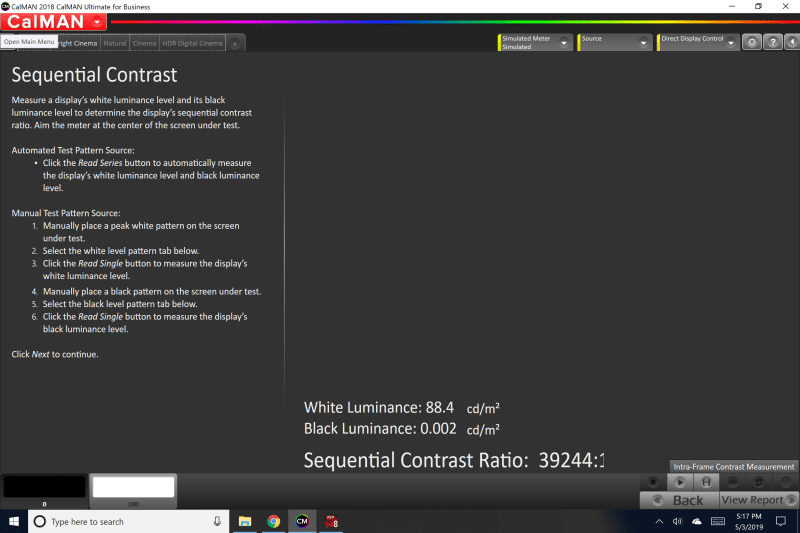

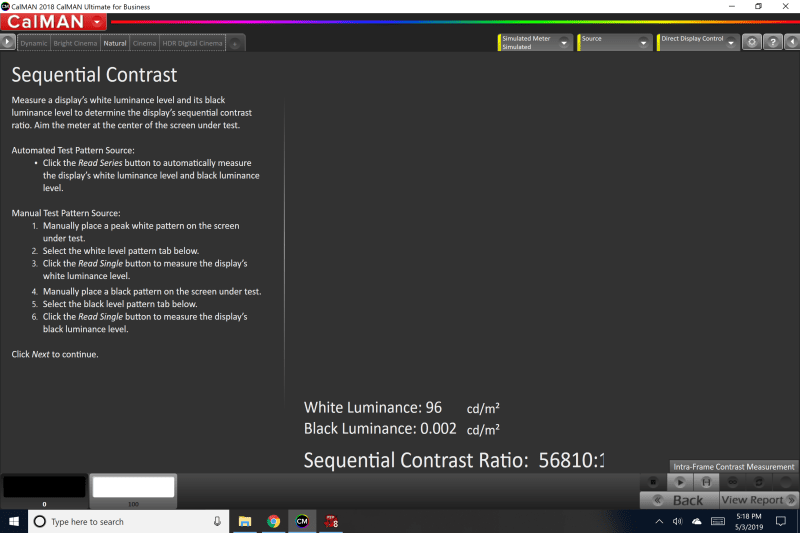

    Contrast Ratio

    Dynamic


    Bright Cinema


    Natural


    Cinema



    HDR Digital Cinema


    These are out of the box values - non-calibrated. I'll wait until the 5050ub has around 200+ hours on it before I even think about calibrating it.

    Some of the things I have noticed so far is that the 505o has a HDR button on the remote which when pressed brings up a HDR slider. The slider has values from 1-16 with the lower numbers being brighter and the higher numbers being darker. I've tended to adjust it as needed but it seems that it is generally anywhere from 6-8. The default value is 8. There's also a new grayscale calibration feature. There is still the old RGB Gains/Offsets under 'Custom' in 'Color Temp'. Now there is also a menu item titled 'Grayscale' just below 'Custom'. It includes 8 step grayscale calibration that includes adjustments for Red, Green, Blue and Brightness. I haven't played around with this at all and I'm not quite sure what 8 steps Epson has included for calibration but it is a step forward and the should be commended if this feature functions properly. Outside of that, I haven't noticed anything that stands out to me as different from the 5040ube.

    I'll be adding to this thread as I go along.

    #1 mechman, May 3, 2019
    Last edited: May 3, 2019
    Todd Anderson likes this.
  2. Todd Anderson

    Todd Anderson News Editor / Reviewer/ Senior Admin
    Staff Member

    Joined:
    Jan 20, 2017
    Messages:
    4,929
    Likes Received:
    1,456
    Location:
    Balt/Wash Metro
    Ohhhhh... nice!!! Awesome data.

    Looking forward to reading impressions and seeing some post-cal measurements! :T:T

  3. mechman

    mechman Senior Admin
    Staff Member
    Thread Starter

    Joined:
    Apr 4, 2017
    Messages:
    777
    Likes Received:
    155
    Location:
    Empire Township, MN
    So far I'm impressed. It's a nice step up from the 5040.
