Edirol UA25EX Berhinger ECM8000

[leondebengala]

Hi guys
I´ve a Edirol UA 25 ex and this mic, but I cannot do the measurements. Please, Could you help me?



[Wayne A. Pflughaupt]

Assuming you’re talking about using this set-up with REW, have you read and followed the REW Help Files?

Regards,
Wayne



[leondebengala]

Assuming you’re talking about using this set-up with REW, have you read and followed the REW Help Files?

Regards,
Wayne

Hi.
I don`t know where are these help files. Please, Can you show me?
Regards



[Wayne A. Pflughaupt]

https://www.roomeqwizard.com/help/help_en-GB/html/index.html
https://www.avnirvana.com/resources/getting-started-with-rew-a-step-by-step-guide.19/
https://www.avnirvana.com/threads/some-guides-to-rew-and-acoustic-measurement.121/

Regards,
Wayne



[leondebengala]

Thanks!! I'll see these post and I try to play it.



[leondebengala]

Hi guys.
I don't get it.
When I want to calibrate sound card Edirol I can't do it.

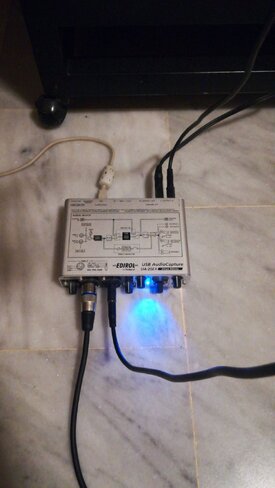

I selected:
-R out and R in for loop back,
-L in to berhinger ecm 8000
-L out to preamplifier. jack to RCA (Red and white to line input).

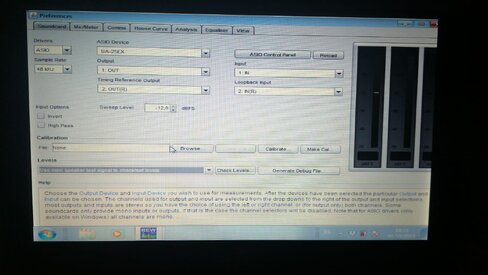

(image 1 and 2)

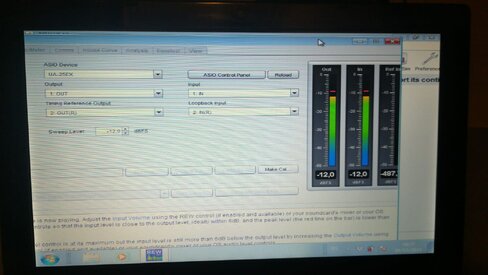

Now, I do measuring to calibrate sound card, but level out it's same to level in. I don't change any level.

(Image 3)

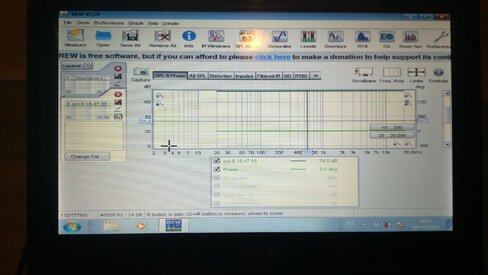

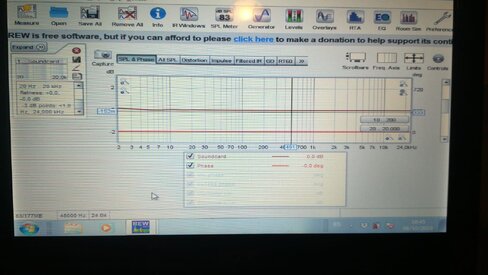

So, the measuring without spl calibrated is sound card (image 4) and measuring room (image 5)

It´s bad, but I don't kwon how to do it.



[leondebengala]

I forget that I use windows 7 64 bits with this driver to Roland official side. And I selected in sound car: phamtom on, advanded driver on and 48 sample rate in ASIO option rew.



[DanDan]

You do not need to Calibrate the Soundcard. Loopback may have some purposes in timing, but REW and others work fine without it, e.g. with USB Mics.
DD
