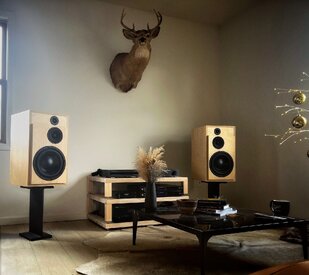

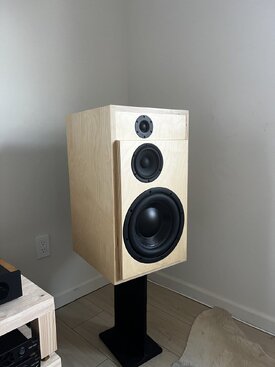

Hey all I wanted to share my project I finished up. It’s a 3way using the 10in CSS SDX10 woofer, 5in Satori MW13p8 mid, and the CSS LD25x tweeter.

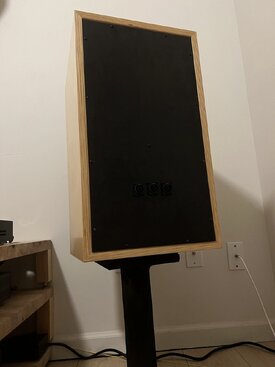

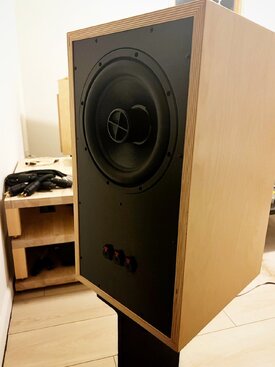

I started also with the CSS APR 10in passive radiator but have since replace the back and went sealed. Much happier with the change.
Using the Sublime Active crossover at 190hz and 2100hz.

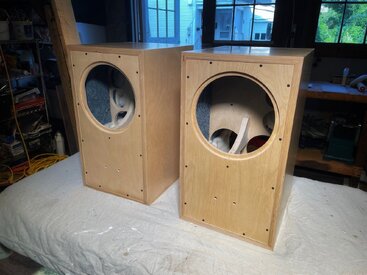

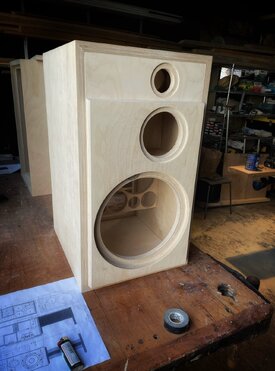

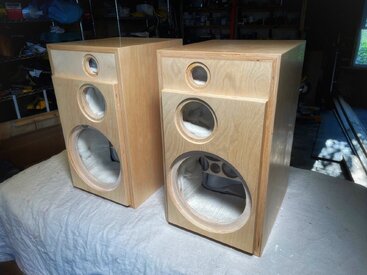

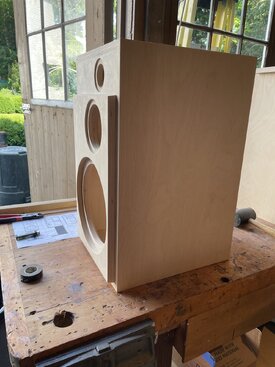

Cabinets are 18mm Baltic Birch.
Heavy design inspo from Troels.
-3db @23hz.
This was my first build and they sound incredible. End game speakers.


Attachments

  • 70957078380__1E25B769-0BEA-42FD-A4AF-18EE78915B87.jpeg
    245.6 KB · Views: 42
  • 71080114386__D4D6669D-B2C1-4CC0-9922-824271649472.jpeg
    257.6 KB · Views: 42
  • 71080133962__7626F28B-96B3-44AE-95A0-53A713CF01E7.jpeg
    266.5 KB · Views: 36
  • IMG_5902.jpeg
    265 KB · Views: 36
  • IMG_5906.jpeg
    274 KB · Views: 45
  • IMG_7627.jpeg
    166.8 KB · Views: 36
  • IMG_7619.jpeg
    199.1 KB · Views: 46
  • IMG_8505.jpeg
    147.8 KB · Views: 44
  • B6880F5E-704C-4A2B-A751-43416FDEC875.jpeg
    254.3 KB · Views: 42

Sonnie Parker

Senior Admin
Staff member
Joined
Apr 2, 2017
Posts
5,862
Location
Alabama
More
Preamp, Processor or Receiver
StormAudio ISP Elite 24 MK3 Processor
Main Amp
McIntosh MC1.25KW Monoblock Amps
Additional Amp
StormAudio PA 16 MK3
Music Server
ROON Nucleus One
Universal / Blu-ray / CD Player
Panasonic UB9000 4K UHD Player
Streaming Equipment
Kaleidescape
Lenovo X1 Carbon
Apple TV 4K
FireCube 3
Streaming Subscriptions
Lifetime Roon Subscription
Tidal
qobuz
Netflix
Amazon Prime
Other Equipment
Zero Surge 8R15W-1
Zero Surge 2R20W
Front Speakers
RTJ 410
Front Wide Speakers
JTR Neosis 110HT
Center Channel Speaker
MartinLogan Focus C-18
Surround Speakers
JTR Neosis 210RT
Surround Back Speakers
JTR Neosis 210RT
Front Height Speakers
JTR Neosis 110HT-SL
Middle Height Speakers
JTR Neosis 110HT-SL
Rear Height Speakers
JTR Neosis 110HT-SL
Subwoofers
JTR Captivators - 4000ULF-TL x2 + 2400 x6
Video Display Device
Sony 98X90L
Remote Control
AVA Cinema
Cables
AudioQuest - Various
THX PixelGen HDMI
Pangea Power Cables
Custom Cables
Satellite System
Dish Joey 4K
Network/Internet
C-Spire 1Gig Fiber
Omada OC300 Controller
Omada ER8411 10G Router
Omada SG3218XP-M2 10G/2.5G Managed Switch
Omada SG2210XMP-M2 10G/2.5G Managed Switch
SilentPower LAN iPurifier Pro (for Nucleus One)
Other Equipment
Salamander Synergy Equipment Stand
VTI Amp Stands for the Monoblocks
Headphones/IEMs
HIFIMAN HE1000se
Unique Melody Mest MKII
Headphone DAC/Amp
Eversolo DMP-A6
RME ADI-2 DAC FS
HIFIMAN Goldenwave Serenade
Whole House System
HEOS System
Home-150 Speaker x6
Samsung S9 Tablet w/ HEOS
Office/Study System
Office System
Dell Precision Computer
Roon Networked
Vanatoo Transparent One Encore Plus Speakers
Secondary/Additional Room System
AV Test Room System
NAD M33 Streaming DAC Amp
MartinLogan Motion XT F200
JTR Captivator RS1
miniDSP EARS
Zero Surge 8R15W-1
Zero Surge 2R20W
Dell Optiplex
Roon Networked
Secondary/Additional Room System
Sunroom System
Denon AVR-X1800H HEOS Receiver
Soundfield Custom Speakers
Dayton Audio IO8XTW Outdoor Speakers
Roon Networked
Dish Joey
JVC 37" TV
Secondary/Additional Room System
Cabin System
Onkyo TX-SR805 Receiver
Infinity Primus P163 Speakers
RSL Outsiders Outdoor Speakers
Shield TV Pro
Sony 55" TV
Secondary/Additional Room System
Vinyl Room
Accuphase E-280 Integrated Amp
Technics SL-1210GR2 Turntable
Ortofon 2M Blue Cartridge
KLH Model Three Speakers
Zero Surge 8R15W-1
That's some fine looking work you did there... very nice.

I had pretty much forgotten about CSS and their drivers. That SDX10 is a very stout driver too, and I remember a lot of guys making subs with those.

Jeff at JTR uses the Baltic Birch... that's some good stuff too.


camrector

Moderator
Staff member
Thread Starter
Joined
Jan 2, 2023
Posts
12
More
Main Amp
Hypex NCx500
Additional Amp
3e 260-2-29A x2
Other Amp
Yamaha AS 2200
DAC
Gustard A26 &DIY Ian Canada
Computer Audio
Focus Fidelity/Hqplayer/Roon
Front Speakers
DIY CSS active 3way
Other Equipment
Gustard P26, Sublime Acoustics crossover, TeraDak OCXO FMC
Thanks Sonnie.
It is an excellent sub/woofer. Plays dead flat to like 500hz. No issues at all crossing it at 190hz. It’s perfect in a sealed box too. 18mm Xmax and 750w rms. Just perfect for some DSP.


Tim Hector

Moderator
Staff member
Joined
Jul 5, 2018
Posts
48
Location
St. Charles Missouri
More
Preamp, Processor or Receiver
SST Ambrosia and Accuphase Clone
Main Amp
Sumo Nine (Rebuilt with outstanding parts)
Additional Amp
SST AMBROSIA Preamp
Other Amp
DIY Jeff Rowland 535.... found original boards
DAC
Denafrips Enyo
Computer Audio
Dedicated laptop optimized for music
Streaming Subscriptions
DIY DAC, ES9018, ES9038Q2M, AD1862 all Comp Audio
Front Speakers
DIY - 2 Channel
Subwoofers
Velodyne (when used), Klipsch
Other Speakers
DIY
Satellite System
Living room: Marantz SR19 Receiver / SLS Q line mtm fronts, polk center channel, JBL Subwoofer
Congrats on a very nice looking speaker. One suggestion that I might make. You added a front plate for time alignment. You can put a line of felt along the top edge between the mid and tweeter. Should be noticeable in cutting down a frequency ripple caused by cabinet diffraction. Enjoy these beauties. Tim


camrector

Moderator
Staff member
Thread Starter
Joined
Jan 2, 2023
Posts
12
More
Main Amp
Hypex NCx500
Additional Amp
3e 260-2-29A x2
Other Amp
Yamaha AS 2200
DAC
Gustard A26 &DIY Ian Canada
Computer Audio
Focus Fidelity/Hqplayer/Roon
Front Speakers
DIY CSS active 3way
Other Equipment
Gustard P26, Sublime Acoustics crossover, TeraDak OCXO FMC
Thanks Tim.
What you cant really see in the picture is the 15degree slope that top edge makes with the cabinet. This acts a wave guide for the tweeter, so there isn’t any frequency ripple from diffraction.


Mike Schramm

Moderator
Staff member
Bright Side Crew
Joined
Sep 18, 2019
Posts
464
Location
Minooka, Illinois
More
Preamp, Processor or Receiver
Onkyo TX-RZ840
Main Amp
Emotiva BasX A7
Universal / Blu-ray / CD Player
Panasonic DP-UB820
Streaming Equipment
Apple 4K
Streaming Subscriptions
Netflix, Hulu, Apple Music, Amazon Prime
Front Speakers
SVS Ultra Bookshelves
Center Channel Speaker
SVS Ultra Center
Surround Speakers
SVS Prime Satellites
Surround Back Speakers
SVS Prime Satellites
Front Height Speakers
SVS Prime Satellites
Rear Height Speakers
SVS Prime Satellites
Subwoofers
SVS PB-2000 Pro (x2)
Other Speakers
miniDSP 2x4 HD
Video Display Device
Sony XR-77A80J
Remote Control
Logitech Harmony One
Fantastic looking speakers. Gives me the bug to maybe try my hand at DIYing my own set of speakers like this. The pic of the layers of ply perfectly lining up in the corner is so gratifying!


camrector

Moderator
Staff member
Thread Starter
Joined
Jan 2, 2023
Posts
12
More
Main Amp
Hypex NCx500
Additional Amp
3e 260-2-29A x2
Other Amp
Yamaha AS 2200
DAC
Gustard A26 &DIY Ian Canada
Computer Audio
Focus Fidelity/Hqplayer/Roon
Front Speakers
DIY CSS active 3way
Other Equipment
Gustard P26, Sublime Acoustics crossover, TeraDak OCXO FMC
Thank you!
You should do it. Very very rewarding


Tim Hector

Moderator
Staff member
Joined
Jul 5, 2018
Posts
48
Location
St. Charles Missouri
More
Preamp, Processor or Receiver
SST Ambrosia and Accuphase Clone
Main Amp
Sumo Nine (Rebuilt with outstanding parts)
Additional Amp
SST AMBROSIA Preamp
Other Amp
DIY Jeff Rowland 535.... found original boards
DAC
Denafrips Enyo
Computer Audio
Dedicated laptop optimized for music
Streaming Subscriptions
DIY DAC, ES9018, ES9038Q2M, AD1862 all Comp Audio
Front Speakers
DIY - 2 Channel
Subwoofers
Velodyne (when used), Klipsch
Other Speakers
DIY
Satellite System
Living room: Marantz SR19 Receiver / SLS Q line mtm fronts, polk center channel, JBL Subwoofer
I've been designing, building and repairing speakers for 45 years. For the guys on our forum, I am happy to offer significant advice for design and diy without compensation.


Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Posts
9,848
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
DAC
THX ONYX
Computer Audio
AudioEngine A2+
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Spotify
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
GoldenEar Invisa MPX
Surround Back Speakers
GoldenEar Invisa MPX
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
Quad Array SVS SB16s
Other Speakers
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Video Display Device
JVC NZ8
Other Equipment
Sony 65-inch A95L OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
Hey all I wanted to share my project I finished up. It’s a 3way using the 10in CSS SDX10 woofer, 5in Satori MW13p8 mid, and the CSS LD25x tweeter.
I started also with the CSS APR 10in passive radiator but have since replace the back and went sealed. Much happier with the change.
Using the Sublime Active crossover at 190hz and 2100hz.
Cabinets are 18mm Baltic Birch.
Heavy design inspo from Troels.
-3db @23hz.
This was my first build and they sound incredible. End game speakers.

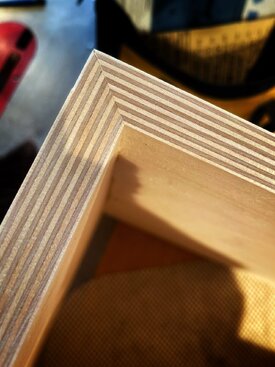

Wow, the edge detail on the cabinets is insane. The thickness of that Baltic Birch really comes into play with the look. Beautiful job. This is a kit, correct?


CampyKid

Registered
Joined
Apr 17, 2019
Posts
2
I've been designing, building and repairing speakers for 45 years. For the guys on our forum, I am happy to offer significant advice for design and diy without compensation.
Hi Tim, I'm a newbie to this forum, however I want to build my own speakers. I have advanced wooodworking skills and an electronics degree which I haven't used in years!
I'm curious as to what you think about using Car Audio drivers instead of Home Audio drivers. I'm not a fan of Chinese Electronics and would like to something more robust like some drivers from Hertz (Italian).
I just want to build something to replace my Boston Acoustics CR-85's just something in a 2 way system. I've looked at CSS and GR research and think that they're pricey considering they use Chinese Drivers.


Tim Hector

Moderator
Staff member
Joined
Jul 5, 2018
Posts
48
Location
St. Charles Missouri
More
Preamp, Processor or Receiver
SST Ambrosia and Accuphase Clone
Main Amp
Sumo Nine (Rebuilt with outstanding parts)
Additional Amp
SST AMBROSIA Preamp
Other Amp
DIY Jeff Rowland 535.... found original boards
DAC
Denafrips Enyo
Computer Audio
Dedicated laptop optimized for music
Streaming Subscriptions
DIY DAC, ES9018, ES9038Q2M, AD1862 all Comp Audio
Front Speakers
DIY - 2 Channel
Subwoofers
Velodyne (when used), Klipsch
Other Speakers
DIY
Satellite System
Living room: Marantz SR19 Receiver / SLS Q line mtm fronts, polk center channel, JBL Subwoofer
It would take some experience to do a good job with CR85's. The woofer is a 7 inch pincushion. You could build a frame that would drop in that pincushion mount and then mount a smaller driver in that. 6 I ch should work. Then, unless you are also going to modify the tweeter mount, you'll need to choose a tweeter that can be removed from its faceplate and mount in the horn load in that cabinet. You will still need to choose a woofer that will go down in that box and gives decent sensitivity, xmax and response curves for that box. Same with the tweeter. It needs to be the same sensitivity or higher than the woofer and be able to be crossed low enough to blend properly with the frequency extension of the woofer that you have chosen. This is only a small start of what you need to know to do this right. The idea of automotive drivers is no big deal as long as they can do the minimal things lined out above. Just be aware that car drivers are normally 4 ohms and often fall well below that. Many pieces of affordable audio gear won't like trying to drive them well. If this all makes sense. We can then add to the discussion about driver matching and any of the ideas that you have, crossover slopes, baffle step etc


CampyKid

Registered
Joined
Apr 17, 2019
Posts
2
Hi Tim, Thank you for the quick response, however I'm not interested in using the BA cabinets I want to build my own Cabinets with baffles etc.
I don't think the BA CR 85 are built that well and the front and back pieces are plastic so I'm pretty sure I can do better than that. Just looking to build a nice 2 way system.
I'm currently using a Carver MX 130 Receiver to drive my speakers. What is your opinion of the CSS kits and drivers along with the x-overs? Have you actually heard or know anyone who has them?


Tim Hector

Moderator
Staff member
Joined
Jul 5, 2018
Posts
48
Location
St. Charles Missouri
More
Preamp, Processor or Receiver
SST Ambrosia and Accuphase Clone
Main Amp
Sumo Nine (Rebuilt with outstanding parts)
Additional Amp
SST AMBROSIA Preamp
Other Amp
DIY Jeff Rowland 535.... found original boards
DAC
Denafrips Enyo
Computer Audio
Dedicated laptop optimized for music
Streaming Subscriptions
DIY DAC, ES9018, ES9038Q2M, AD1862 all Comp Audio
Front Speakers
DIY - 2 Channel
Subwoofers
Velodyne (when used), Klipsch
Other Speakers
DIY
Satellite System
Living room: Marantz SR19 Receiver / SLS Q line mtm fronts, polk center channel, JBL Subwoofer
I've never built a kit in my life. If you have a specific kit that you'd like me to look at or if you have specific drivers that you would want me to look at, let me know, I'm happy to take a look


Tim Hector

Moderator
Staff member
Joined
Jul 5, 2018
Posts
48
Location
St. Charles Missouri
More
Preamp, Processor or Receiver
SST Ambrosia and Accuphase Clone
Main Amp
Sumo Nine (Rebuilt with outstanding parts)
Additional Amp
SST AMBROSIA Preamp
Other Amp
DIY Jeff Rowland 535.... found original boards
DAC
Denafrips Enyo
Computer Audio
Dedicated laptop optimized for music
Streaming Subscriptions
DIY DAC, ES9018, ES9038Q2M, AD1862 all Comp Audio
Front Speakers
DIY - 2 Channel
Subwoofers
Velodyne (when used), Klipsch
Other Speakers
DIY
Satellite System
Living room: Marantz SR19 Receiver / SLS Q line mtm fronts, polk center channel, JBL Subwoofer
I took a few minutes and looked through Hertz drivers this morning. They certainly do publish enough info to do the design work. I looked at the 6 and 8 inch drivers. The few parts that I looked at were developed with the idea of higher spl. They look easy enough to design a 2 way or 3 way. List the parts that you are considering and I'll take a closer look.

Top Bottom
