CEA-2010 max spl limit measurements

[Gavin49]

I am trying to measure the output of my subwoofer to the CEA-2010 or CTA-2043 limits but the limits do not appear. I searched the forum and help but I cannot find any reference to how I should see the limits in the RTA window.

At some point I did see the limit curve flash on the screen while adjusting setup parameters but I have not been able to reproduce this. The signal displayed on the screen is definitely above CEA2010 THD+N limits but there's no indicator telling me it is?!

The same result was found with V20 beta 6 and V20 beta 29. I am using windows 10 with the 32 bit version of REW.

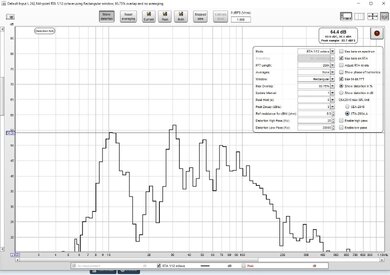

The attached screen cap is a highly distorted 10Hz burst.



[John Mulcahy]

CEA-2010 is a spectrum measurement. The settings to use are shown in the signal generator help for the CEA-2010 signal.



[Gavin49]

Thanks and sorry!

While I did see CEA-2010 referenced in the Signal Generator section, I didn't explore it(scroll down) because I didn't expect to find details about the measurements in the generator section
