Hi Guys,

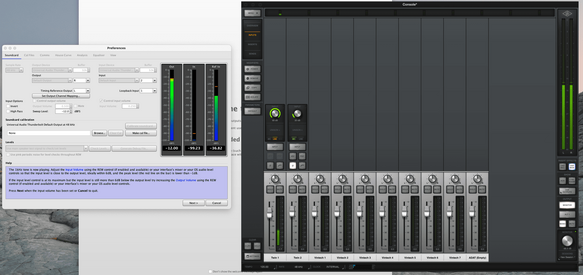

I’m following the “Improve the sound of your home studio – using room eq wizard series” but I’m having some difficulty calibrating my soundcard. The line level loopback connection is too low, even with the gain all the way up. Thought of adjusting the output volume, but that option is greyed out. Any thoughts how to resolve? Many thanks.


Attachments

Wayne A. Pflughaupt

Moderator
Staff member
Joined
May 21, 2017
Messages
531
Location
Corpus Christi, TX
My AV System
Preamp, Processor or Receiver
Yamaha RX-Z7 A/V Receiver (as pre-amp)
Main Amp
Yamaha RX-Z9 AV Receiver (as multichannel amp)
Universal / Blu-ray / CD Player
Pioneer BDP-23FD Blu Ray Player
Front Speakers
Canton Karat 920
Center Channel Speaker
Canton Karat 920
Front Wide Speakers
Realistic Minimus 7 (front EFX speakers)
Surround Speakers
Canton Plus D
Surround Back Speakers
Yamaha YDP2006 Digital Parametric EQ (front mains)
Front Height Speakers
Yamaha YDP2006 Digital Parametric EQ (surrounds)
Rear Height Speakers
Yamaha YDP2006 Digital Parametric EQ (sub)
Subwoofers
Hsu ULS-15 MKII
Other Speakers or Equipment
Adcom ACE-515 (for power management)
Video Display Device
Yamaha DT-2 (digital clock display)
Screen
Audio Control R130 Real Time Analyzer
Remote Control
Stock Yamaha Remote
Streaming Equipment
Pioneer PDP-6010FD 60" Plasma TV
What is the soundcard?

Regards,
Wayne


John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
5,737
Do you have a loopback cable from the R output to input channel 2? The screenshot shows an input signal on channel 1. Soundcard calibration calibrates the channel that will be used for measurement, so the mic gets replaced by a loopback cable to do the calibration.


jjack87

Registered
Thread Starter
Joined
Mar 29, 2022
Messages
10
My AV System
Main Amp
Apollo twin
Computer Audio
Mac mini
Front Speakers
Eve SC307
Other Equipment
XREF Calibration Mic
Do you have a loopback cable from the R output to input channel 2? The screenshot shows an input signal on channel 1. Soundcard calibration calibrates the channel that will be used for measurement, so the mic gets replaced by a loopback cable to do the calibration.
Thanks for the note. Changed to what you've said above. Any thoughts towards getting the output level to match input level? Still quite a big difference.
52611

Many thanks!!


John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
5,737
Apollo Twin has the same max levels for outputs and line inputs, so must be a gain setting on output and/or input. Either adjust the gain controls on the interface or the UA console or check to see if there are gain controls for the output and/or input in the OS, shown under Audio Midi Setup.


jjack87

Registered
Thread Starter
Joined
Mar 29, 2022
Messages
10
My AV System
Main Amp
Apollo twin
Computer Audio
Mac mini
Front Speakers
Eve SC307
Other Equipment
XREF Calibration Mic
Apollo Twin has the same max levels for outputs and line inputs, so must be a gain setting on output and/or input. Either adjust the gain controls on the interface or the UA console or check to see if there are gain controls for the output and/or input in the OS, show
52612
n under Audio Midi Setup.
Checked levels within UAD console and the monitor and and output reference levels already set to highest. Trying to configure within Audio midi setup, but not seeing the ability to adjust.


John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
5,737
The OS may not offer gain controls if they are managed by the interface hardware. Been a while since I tried the Apollo Twin, but don't recall any difficulty matching levels. Maybe the output ref level should be set to +20 dBu instead of +4, but that wouldn't be enough for the 25 dB difference you are seeing. The difference in levels won't stop the calibration being run though, so you could just go ahead. The main purpose of the cal is to make sure there isn't any input monitoring active, if any of the input signal feeds back to the output the measurements become meaningless.


jjack87

Registered
Thread Starter
Joined
Mar 29, 2022
Messages
10
My AV System
Main Amp
Apollo twin
Computer Audio
Mac mini
Front Speakers
Eve SC307
Other Equipment
XREF Calibration Mic
The OS may not offer gain controls if they are managed by the interface hardware. Been a while since I tried the Apollo Twin, but don't recall any difficulty matching levels. Maybe the output ref level should be set to +20 dBu instead of +4, but that wouldn't be enough for the 25 dB difference you are seeing. The difference in levels won't stop the calibration being run though, so you could just go ahead. The main purpose of the cal is to make sure there isn't any input monitoring active, if any of the input signal feeds back to the output the measurements become meaningless.

Hi John,

Thanks for the reply and notes - very helpful :)

Figured out that I wasn't seeing ANY loopback signal - just ground noise - from when the line input is turned up that high. I had alternate monitors setup in the routing which was overriding my line outputs. Just fyi.

Many many thanks!


jjack87

Registered
Thread Starter
Joined
Mar 29, 2022
Messages
10
My AV System
Main Amp
Apollo twin
Computer Audio
Mac mini
Front Speakers
Eve SC307
Other Equipment
XREF Calibration Mic
The OS may not offer gain controls if they are managed by the interface hardware. Been a while since I tried the Apollo Twin, but don't recall any difficulty matching levels. Maybe the output ref level should be set to +20 dBu instead of +4, but that wouldn't be enough for the 25 dB difference you are seeing. The difference in levels won't s
52622
top the calibration being run though, so you could just go ahead. The main purpose of the cal is to make sure there isn't any input monitoring active, if any of the input signal feeds back to the output the measurements become meaningless.

Got the loopback levels to match. When I run the measurement for the audio interface though I get this reading which doesn't seem right.


John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
5,737
That shows there is some monitoring active, some of the input signal is being mixed back to the output. The output should only get the signal from REW, mute anything else.
