Bug Report: miccal0fsvoltage (Scaling voltage): [kV] are reset to [V] on closing dialog

matzzee

Registered
Thread Starter
Joined
Jun 27, 2019
Messages
1
Hi,

I hope this is the right place for a bug-report. If not, sorry and thanks for moving it to the right place!

Found in REW V5.20.13.

i use REW to view the speaker output voltage of a high power amp (about 2.5kW / Channel).
As my ADC can't handle that voltage, i use an attenuator 1/100.
To see voltages (as they are at the speaker terminals) in REW, i use the compensation in the "Channel Settings", which are inside gear symbol right beside "CH1-CH".

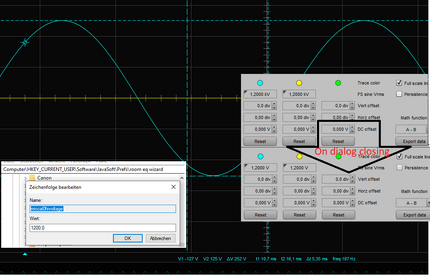

The correct scaling voltage in my case is 1,2 kV. If i enter this value, it works, but on closing the dialog, the scaling value gets reset to 1,2 V. Then, Scope graphs are obviously odd.

I was able to help myself by setting miccal0fsvoltage in registry to 1200.0, but that's not the preferred way of doing this.

Can you avoid that kV is changed into V on closing the channel settings?

Thanks!

BR


Attachments

  • REW_issue_scaling_kV_to_V.png
    22.3 KB · Views: 10

John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
7,212
I'll fix that for the next build. The field did not anticipate values above 999 V or below 1 uV so when the value gets converted to engineering units it is not parsed correctly.
