Step response simulation,

Simulated frequency response (the easy part to get right, technically, but not always sonically) - very important to the perceived sound quality.

Simulated step step response. Ideally we want a clean entrance and a pure wave that fades out in the exit.

And finally a close examination of the correction impulses. What we’re typically looking for here is excessive correction. But it will also often reveal if something has gone wrong.


Bobski321

Member
Thread Starter
Joined
Apr 4, 2021
Messages
42
Okay so, I just took a bunch of screenshots of some of my graphs. I have no idea if this is what you were talking about.

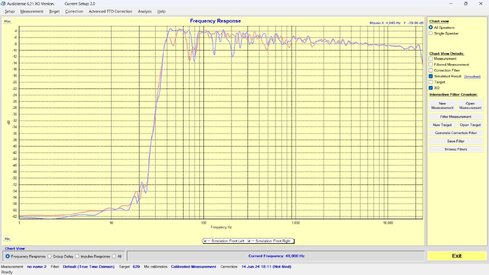

This shot is of my left and right channel together.... Just the simulated results for the frequency response.


Attachments

  • Untitled 5.jpg
    Untitled 5.jpg
    265.9 KB · Views: 36

Bobski321

Member
Thread Starter
Joined
Apr 4, 2021
Messages
42

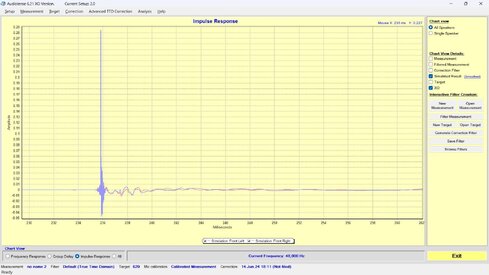

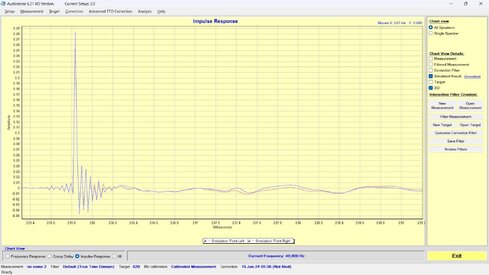

This next one is zoomed up simulated impulse response on both speakers. Not sure if it's better if I zoomed up even more?


Attachments

  • Untitled 4.jpg
    Untitled 4.jpg
    187.1 KB · Views: 34

Bobski321

Member
Thread Starter
Joined
Apr 4, 2021
Messages
42

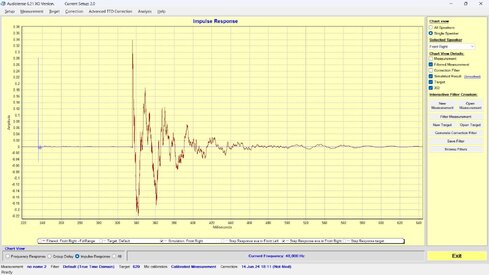

This one is "step response simulation" of one of the channels. And making sure the check at the bottom is on "simulation front right" and "step response Eva nr front right" (whatever that means)

Again, not sure if you want me to zoom up more on one of those....?


Attachments

  • Untitled 3.jpg
    Untitled 3.jpg
    201.5 KB · Views: 42

Bobski321

Member
Thread Starter
Joined
Apr 4, 2021
Messages
42

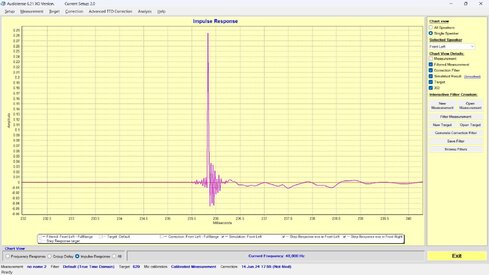

This is a zoom up on the simulation step response I think.... Of the left speaker.


Attachments

  • Untitled 2.jpg
    Untitled 2.jpg
    204.3 KB · Views: 26

Bobski321

Member
Thread Starter
Joined
Apr 4, 2021
Messages
42
That's all I got for now. Please tell me if I'm even taking screenshots of the correct things.

Thanks for your help


juicehifi

Audiolense
Staff member
Joined
Feb 5, 2018
Messages
766
The step response looks very good here.

But it will look even better if you round off the bass some. As of now it has a Sharp drop. That leads to more ringing decay.

Simulated IR looks ok.

Nothing stands out as problematic here, looking good.

PS you can zoom in even more on the time scale next time … on the IRs


Bobski321

Member
Thread Starter
Joined
Apr 4, 2021
Messages
42

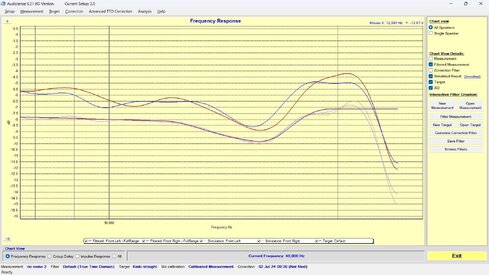

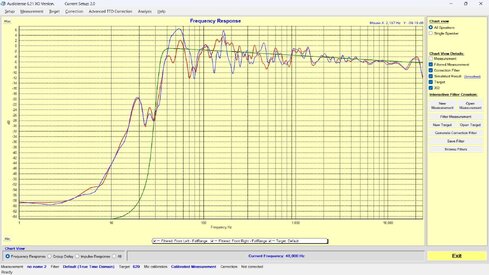

Awesome, thanks for the input. Just a few more pictures for reference. One screenshot of my filtered frequency response for both speakers, just showing how the bass on my speakers drops, and where are my target curve is.

Closer shot on the impulse response for both speakers.

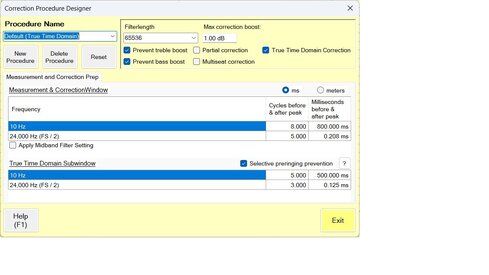

And just one shot showing the correction procedure designer. I don't have anything boosted, and I only use 1dB for Max correction boost. Most of these decisions were the results of just listening.... And preferring this sound.


Attachments

  • FR.jpg
    297.1 KB · Views: 47
  • IR.jpg
    196.6 KB · Views: 47
  • CPD.jpg
    73.8 KB · Views: 47

Bobski321

Member
Thread Starter
Joined
Apr 4, 2021
Messages
42

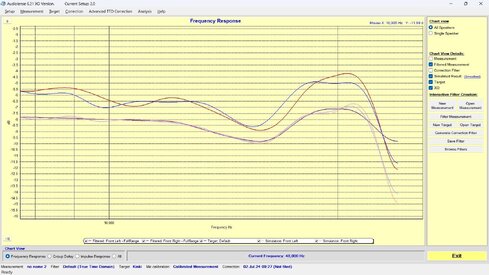

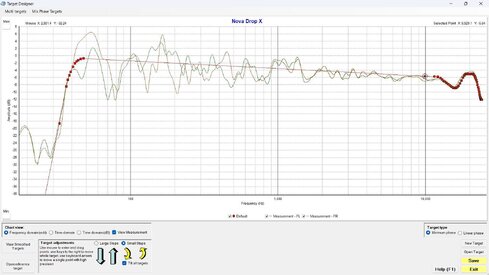

So...I was experimenting a bit with the target curve, and I ended up trying to follow more closely the tweeters response at the very end of its extension. Basically from 12kHz and up.

Wow, what a difference in sound. I know I've read this suggested by others and even in the help files.... But I never actually tried it. It sounds so much smoother this way.

My question is, does it matter how many reference points you use on your target curve. Clearly as you can see, I used quite a bit for the tweeter..... Is it better to use less reference points? Or does it not matter?

Like, I could probably delete 50% of those and still maintain basically the same shape.


Attachments

  • New.jpg
    181.8 KB · Views: 38

juicehifi

Audiolense
Staff member
Joined
Feb 5, 2018
Messages
766
You should perhaps try partial correction, with correction up to 10-12 kHz. It will be in the same spirit, but perhaps even cleaner top.

Btw, it’s the smoothed target that is used for correction … the points you add are stepping stones.


Bobski321

Member
Thread Starter
Joined
Apr 4, 2021
Messages
42
So, I did try partial correction but.... I didn't like it as much. I tried a bunch of different points, but it didn't sound as clear. Imaging was a little bit more diffused. Oh well... I tried.

Just out of curiosity, is there a way to change the channel balance of the outputted convolution file?

Like say, make one channel a couple DB louder(or quieter) then the other. I know that the playback programs generally have this ability.... I'm just curious.

Thanks


juicehifi

Audiolense
Staff member
Joined
Feb 5, 2018
Messages
766
It is possible, but not something I recommend.

How do your measurements look? Do you get consistent delays?


Bobski321

Member
Thread Starter
Joined
Apr 4, 2021
Messages
42
My measurements look good I suppose, but.... I'm just a guy who doesn't know as much as yourself.

Not sure what you mean by consistent delays?

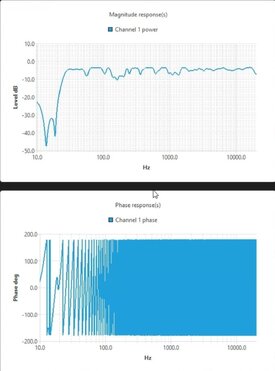

I had another question. I've been using these convolution files with HQplayer.... And in HQplayer you can plot your files.

The picture of included is the plot of one of my channels.

The designer of HQplayer says about this plot "Here you have some phase modification too, not angle just proceeding spinning at continuous rate, but instead you have a discontinuity in the spinning at least at one point where you have phase adjustments.
It is possible to negate this delay related phase spinning, but it also kind of makes the response "fake", since it is "modified reality
".

Could you please give me your take on this? Thanks.


Attachments

  • Screenshot_20240628_202240_Photos.jpg
    111.3 KB · Views: 18

juicehifi

Audiolense
Staff member
Joined
Feb 5, 2018
Messages
766
To your plots: Typically the reality becomes less "modified" by the speakers with Audiolense correction, not more.. But it makes more sense to look at the simulation in Audiolense here.


About delays:


Consitent delays means that the two tweeters ( ore full range speakers like here) have the same delay difference across measurements. when they are taken from the same spot. The numbers seen here can vary a tiny bit, depending on where the peak samples hit the "analog" peaks, but you can also look at the impulse response:



Bobski321

Member
Thread Starter
Joined
Apr 4, 2021
Messages
42

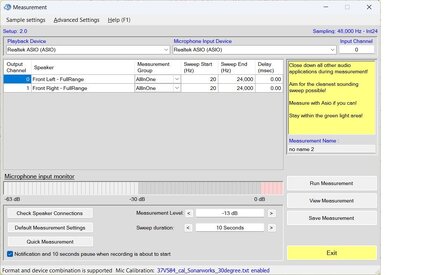

Yep.... I made sure my speakers were time aligned the best I could.

That HQplayer guy suggested I go no more then 18dB per octave. Not sure with Audiolense, if it's really necessary to be that conservative.


Attachments

  • Delays.jpg
    103.4 KB · Views: 26

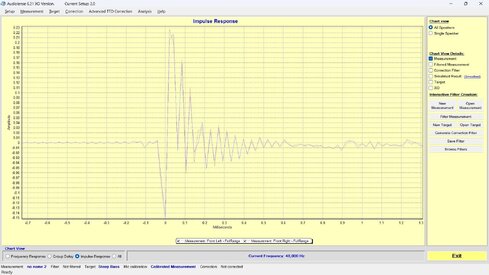

  • Impulse.jpg
    229.7 KB · Views: 28

juicehifi

Audiolense
Staff member
Joined
Feb 5, 2018
Messages
766
It looks like you have the measurement under control here. What do you mean by "18 dB per octave"?


Bobski321

Member
Thread Starter
Joined
Apr 4, 2021
Messages
42
Oh sorry....the amount of bass drop-off. He says your target falls too rapidly and should not exceed 18dB per octave.

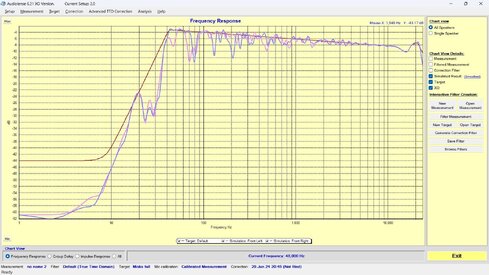

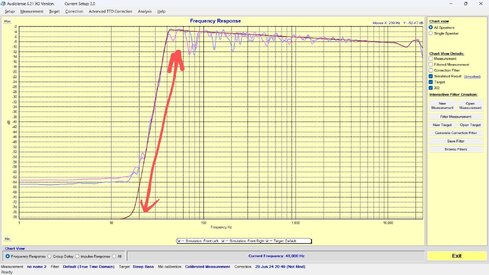

So I made two targets, and just compared them by listening. One following his advice, and one where the target follows the natural bass fall off of the measurement, but continues downward till around -70dB.

I much preferred the steeper bass drop off.(The pic with the red arrow). Plus, I have a two-way speaker, the vocal sound much cleaner the more bass I remove.


Attachments

  • Extra Bass drop~2.jpg
    Extra Bass drop~2.jpg
    333.3 KB · Views: 22
  • 18dB octave.jpg
    18dB octave.jpg
    296.8 KB · Views: 23
Last edited:

juicehifi

Audiolense
Staff member
Joined
Feb 5, 2018
Messages
766
It is important to avoid sharp corners here. You should try a smooth roundoff. Much smoother. And pay attention to the simulation. That’s where you want to see smooth.


Bobski321

Member
Thread Starter
Joined
Apr 4, 2021
Messages
42

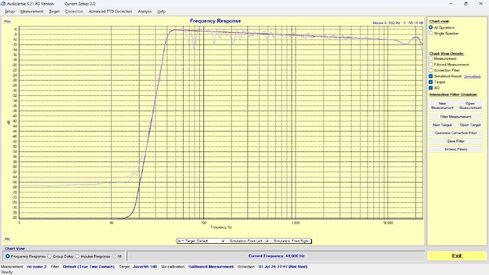

LOL...ya, I already made an adjustment to that to make it smoother, just didn't bother updating the picture.

Should this be ok? I am zoomed out quite a bit.


Attachments

  • Now.jpg
    323.7 KB · Views: 28
Last edited:

juicehifi

Audiolense
Staff member
Joined
Feb 5, 2018
Messages
766
at least you're close enough to go by ear from here. This alignment may create a sense of bass resonnance. Or not. You may experience deeper bass if you round off earlier and more gradual. Or not. I've had instances where I ended with a target that peaked around 200 Hz, which was needed to make those specific speakers play tight bass. It varies.

And besides, preferences makes a difference here.


Bobski321

Member
Thread Starter
Joined
Apr 4, 2021
Messages
42
Awesome, very helpful....thanks.

So...when it comes to high frequency extremes, the help file says the target should be "straight" at the extremes. I've also read that following your tweeters natural FR is recommended.

But my highs fall off fairly rapidly passed 21kHz.

Should my target trend down following the tweeters drop at 21kHz then quickly straighten just before 24kHz?

Or should it just straighten out at 20khz and stay flat till the end?

Thanks again for your help.

I've included 2 examples of the targets.


Attachments

  • current.jpg
    270.4 KB · Views: 22
  • straight.jpg
    270.7 KB · Views: 18
