Can you set up speakers for Atmos incorporating front wides?

In other words instead of front heights and wides use 2 overheads and 2 front wides? Is it possible?

When an atmos track is not available does Dolby DTX or NEO incorporate the two ceiling speakers?

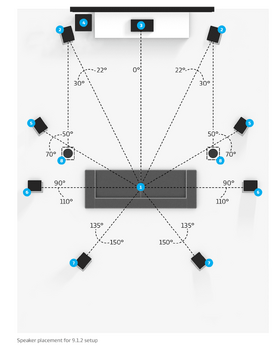

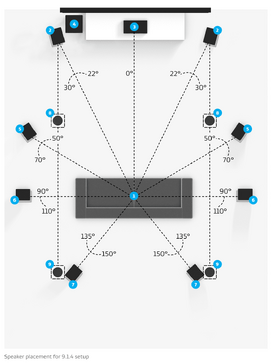

I have found the below image setup but the angles and distance of some of the speakers would be problematic in my room. Such as my front wides being that close to the sitting area.
Also my speakers are the Polk RTIA series. What would be a match to use as ceiling speakers? Also my ceiling is vaulted so I would need speakers which could be properly mounted.

Ultimately I would like to do a modified 9.4.4 Atmos setup (using the front heights and wides 11.4.2) ...but the denon AVR-X7200WA only handles 11 total channels. Is there a A/V receiver that can do 13 channels?

Any comments, suggestions. Or should I just stay with DTX and NEO and leave my speakers were they are.


Attachments

  • 942.png
    117.1 KB · Views: 533
  • 9.4.4.png
    94.9 KB · Views: 557
Last edited:

Sonnie

Senior Admin
Staff member
Joined
Apr 2, 2017
Messages
5,055
Location
Alabama
More
Preamp, Processor or Receiver
StormAudio ISP Elite 24 MK3 Processor
Main Amp
McIntosh MC1.25KW Monoblock Amps
Additional Amp
StormAudio PA 16 MK3
Computer Audio
Intel NUC w/ Roon ROCK
Universal / Blu-ray / CD Player
Panasonic UB9000 4K UHD Player (for media discs)
Front Speakers
RTJ 410
Center Channel Speaker
MartinLogan Focus C-18
Front Wide Speakers
JTR Neosis 110HT
Surround Speakers
JTR Neosis 210RT
Surround Back Speakers
JTR Neosis 210RT
Front Height Speakers
JTR Neosis 110HT-SL
Rear Height Speakers
JTR Neosis 110HT-SL
Subwoofers
JTR Captivator 2400 x6
Other Speakers or Equipment
VTI Amp Stands for the Monoblocks
Video Display Device
Sony 98X90L
Remote Control
Universal MX-890
Streaming Equipment
FireCube for movies and Lenova Carbon X1 for Roon
Streaming Subscriptions
Lifetime Roon Subscription
Tidal
qobuz
Netflix
Amazon Prime
Satellite System
Dish Joey 4K
Other Equipment
Zero Surge 8R15W-1 | Salamander Synergy Equipment Stand
I don't think the front wides are going to give you the same effect as front heights. Those are designed to be overhead, so I can't see how it would work.

I am not aware of a receiver that does 13 channels. The new Emotiva RMC-1 processor is supposed to do 16 channels, but it's a 7.4.4 to 7.3.6 layout.
