Hello!

I have two sets of Audiolense filters for my 7.1.4 system (12 channels) one with XO and another one without. When trying to open the one with XO in X-MCFX Convolver the convolver asks for 23 inputs and outputs.

What would be the correct way to route that? The one without crossover is working fine, 12 inputs and 12 outputs from channels 1-12 respectively on my sound card.

I'm using this as a live digital input, both filters work fine as .alc files in AL Convolver but I need no have multiple filters running at the same time so I'm trying to setup multiple instances of X-MCFX Convolver


Attachments

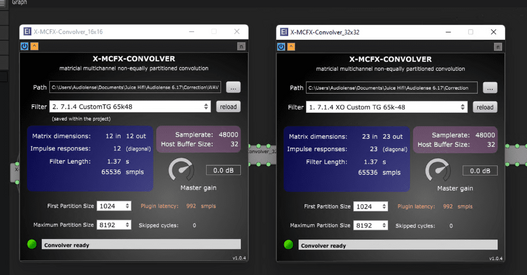

  • Screen Shot 2022-03-26 at 1.42.31 p.m..png
    Screen Shot 2022-03-26 at 1.42.31 p.m..png
    206 KB · Views: 18

juicehifi

Audiolense
Staff member
Joined
Feb 5, 2018
Messages
700
One of the reasons that Audiolense has an exceptional bass management is the ability to integrate the sub(s) to each single speaker. That can lead to a high number of correction filters. You need to study the config file carefully since you’re using a convolver that doesn’t. And manually configure accordingly.
